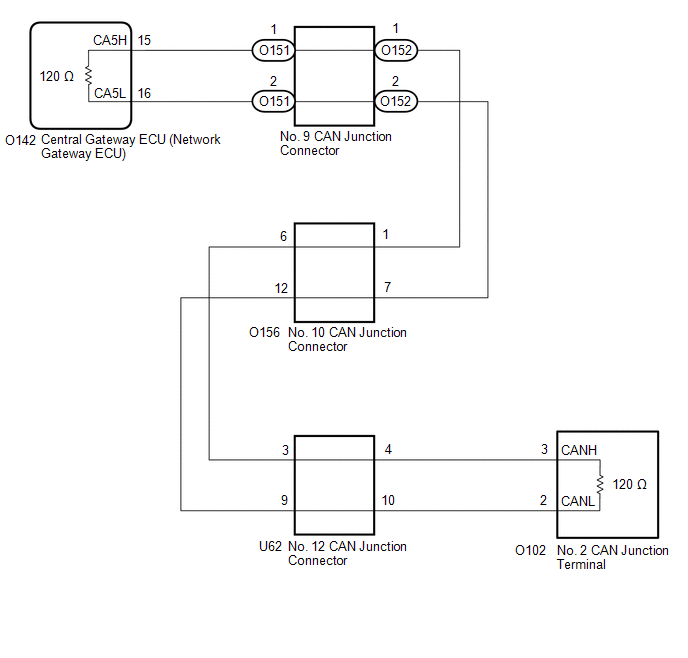

Open in Bus 5 Main Bus Line [11/2017 - 09/2020]: Wiring Diagram

GTY803820

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
