Yaw Rate Sensor Communication Stop Mode [11/2017 - ]: Procedure
- CHECK FOR OPEN IN CAN BUS LINES (YAW RATE SENSOR BRANCH LINE)
- Disconnect the cable from the negative (-) battery terminal.
- Disconnect the O81 yaw rate sensor connector.
- Measure the resistance according to the value(s) in the table below.

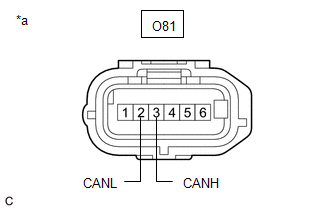

*a Front view of wire harness connector
(to Yaw Rate Sensor)Standard Resistance
Tester Connection Condition Specified Condition O81-3 (CANH) - O81-2 (CANL) Cable disconnected from negative (-) battery terminal 54 to 69 Ω Result
Result OK NG
Result:
NG
REPAIR OR REPLACE CAN BRANCH LINES OR CONNECTOR (YAW RATE SENSOR)
Result:
OK
See step 2
- CHECK HARNESS AND CONNECTOR (POWER SOURCE CIRCUIT)
- Measure the resistance according to the value(s) in the table below.

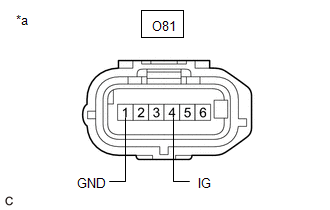

*a Front view of wire harness connector
(to Yaw Rate Sensor)Standard Resistance
Tester Connection Condition Specified Condition O81-1 (GND) - Body ground Cable disconnected from negative (-) battery terminal Below 1 Ω - Reconnect the cable to the negative (-) battery terminal.
- Measure the voltage according to the value(s) in the table below.
Standard Voltage
Tester Connection Condition Specified Condition O81-4 (IG) - Body ground Engine switch on (IG) 11 to 14 V Result
Result OK NG
Result:
OK
REPLACE YAW RATE SENSOR. Refer to REMOVAL [09/2014 - ]
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR (POWER SOURCE CIRCUIT)
- Measure the resistance according to the value(s) in the table below.
