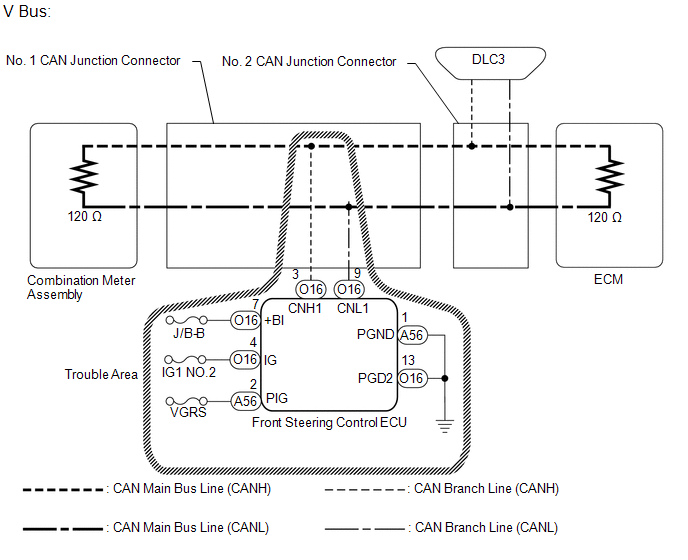

Steering Control ECU Communication Stop Mode [09/2014 - 11/2017]: Wiring Diagram

GTY649475

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
