Can Communication System - Circuit Tests (2 Of 5)
>>
Can Communication System
>>
Steering Angle Sensor Communication Stop Mode [09/2014 - 11/2017]
>>

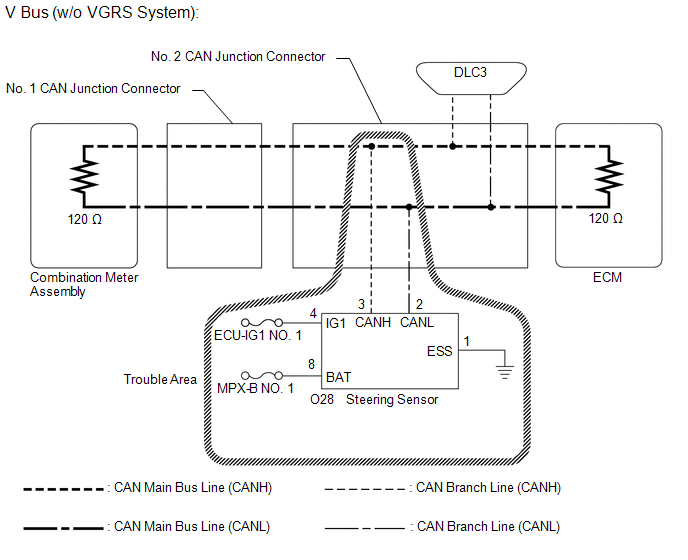

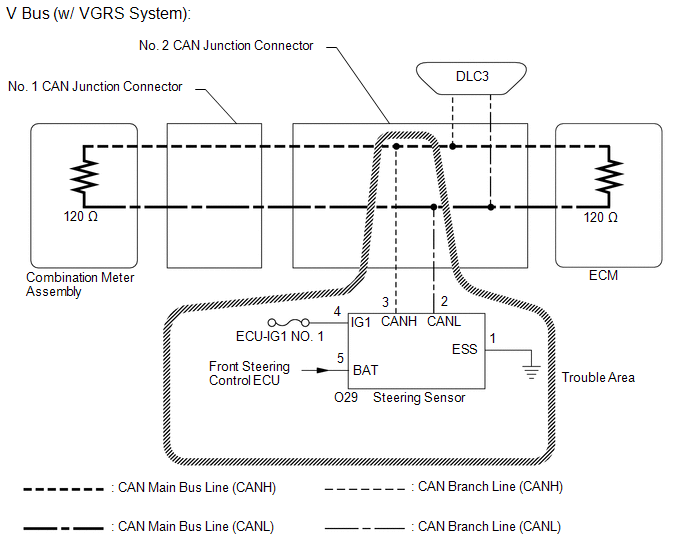

Wiring Diagram
Steering Angle Sensor Communication Stop Mode [09/2014 - 11/2017]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
