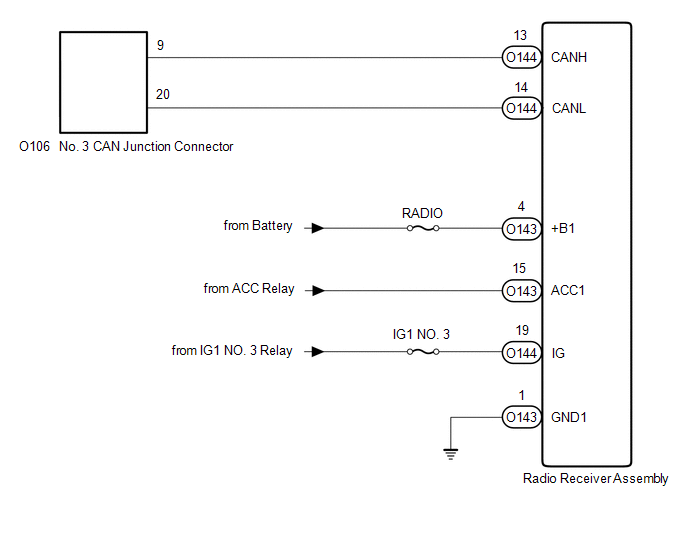

Radio Receiver Assembly Communication Stop Mode [11/2017 - ]: Wiring Diagram

GTY821745

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
