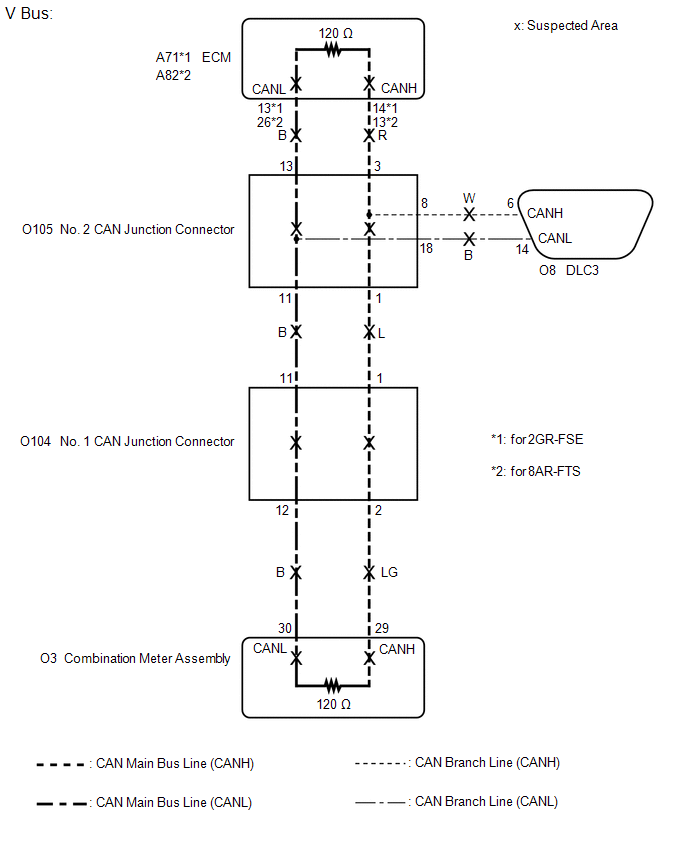

Open in CAN Main Bus Line [10/2015 - 11/2017]: Wiring Diagram

GTY613425

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
