Open in CAN Main Bus Line [10/2015 - 11/2017]: Procedure

  1. CHECK FOR OPEN IN CAN BUS LINES (DLC3 BRANCH LINE)
    1. Disconnect the cable from the negative (-) battery terminal.
    2. Measure the resistance according to the value(s) in the table below.
      GTY495438Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3

      Standard Resistance

      Tester Connection Condition Specified Condition
      O8-6 (CANH) - O8-14 (CANL) Cable disconnected from negative (-) battery terminal 108 to 132 Ω
      NOTE:

      When the measured value is 133 Ω or higher and a CAN communication system DTC is output, there may be a fault besides disconnection of the DLC3 branch line. For that reason, troubleshooting should be performed again from How to Proceed with Troubleshooting after repairing the trouble area.

      Refer to HOW TO PROCEED WITH TROUBLESHOOTING [09/2014 - 11/2017]

      Result

      Result
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINES CONNECTED TO DLC3

    Result:

    OK

    See step  2

  2. CHECK FOR OPEN IN CAN BUS LINES (COMBINATION METER ASSEMBLY - NO. 1 CAN JUNCTION CONNECTOR)
    1. Disconnect the O3 combination meter assembly connector.
      GTY512288Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to Combination Meter Assembly)
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      O3-29 (CANH) - O3-30 (CANL) Cable disconnected from negative (-) battery terminal 108 to 132 Ω

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE COMBINATION METER ASSEMBLY. Refer to  REMOVAL [09/2014 - ]

    Result:

    NG

    See step  3

  3. CHECK FOR OPEN IN CAN BUS LINES (ECM - NO. 2 CAN JUNCTION CONNECTOR)
    1. Reconnect the O3 combination meter assembly connector.
    2. Disconnect the A71 or A82 ECM connector.

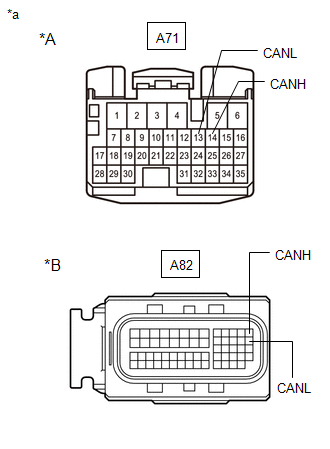

      GTY637447Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A for 2GR-FSE
      *B for 8AR-FTS
      *a Front view of wire harness connector
      (to ECM)
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance (for 2GR-FSE)

      Tester Connection Condition Specified Condition
      A71-14 (CANH) - A71-13 (CANL) Cable disconnected from negative (-) battery terminal 108 to 132 Ω

      Standard Resistance (for 8AR-FTS)

      Tester Connection Condition Specified Condition
      A82-13 (CANH) - A82-26 (CANL) Cable disconnected from negative (-) battery terminal 108 to 132 Ω

      Result

      Result Proceed to
      OK (for 2GR-FSE) A
      OK (for 8AR-FTS) B
      NG C

    Result:

    REPLACE ECM. Refer to  REMOVAL [09/2014 - 11/2017]

    Result:

    REPLACE ECM. Refer to  REMOVAL [10/2015 - ]

    Result:

    See step  4

  4. CHECK FOR OPEN IN CAN BUS LINES (NO. 1 CAN JUNCTION CONNECTOR)
    1. Reconnect the A71 or A82 ECM connector.
    2. Disconnect the O104 No. 1 CAN junction connector.
      GTY508131Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to No. 1 CAN Junction Connector)
      *b to No. 2 CAN Junction Connector
      *c to Combination Meter Assembly
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition Connected to
      O104-1 (CANH) - O104-11 (CANL) Cable disconnected from negative (-) battery terminal 108 to 132 Ω No. 2 CAN junction connector
      O104-2 (CANH) - O104-12 (CANL) Cable disconnected from negative (-) battery terminal 108 to 132 Ω Combination meter assembly

      Result

      Result Proceed to
      OK A
      NG (Combination meter assembly main line) B
      NG (No. 2 CAN junction connector main line) C

    Result:

    REPLACE NO. 1 CAN JUNCTION CONNECTOR

    Result:

    REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (COMBINATION METER ASSEMBLY - NO. 1 CAN JUNCTION CONNECTOR)

    Result:

    See step  5

  5. CHECK FOR OPEN IN CAN BUS LINES (NO. 2 CAN JUNCTION CONNECTOR)
    1. Reconnect the O104 No. 1 CAN junction connector.
    2. Disconnect the O105 No. 2 CAN junction connector.
      GTY519837Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to No. 2 CAN Junction Connector)
      *b to No. 1 CAN Junction Connector
      *c to ECM
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition Connected to
      O105-1 (CANH) - O105-11 (CANL) Cable disconnected from negative (-) battery terminal 108 to 132 Ω No. 1 CAN junction connector
      O105-3 (CANH) - O105-13 (CANL) Cable disconnected from negative (-) battery terminal 108 to 132 Ω ECM

      Result

      Result Proceed to
      OK A
      NG (ECM main line) B
      NG (No. 1 CAN junction connector main line) C

    Result:

    REPLACE NO. 2 CAN JUNCTION CONNECTOR

    Result:

    REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (ECM - NO. 2 CAN JUNCTION CONNECTOR)

    Result:

    REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 1 CAN JUNCTION CONNECTOR - NO. 2 CAN JUNCTION CONNECTOR)
