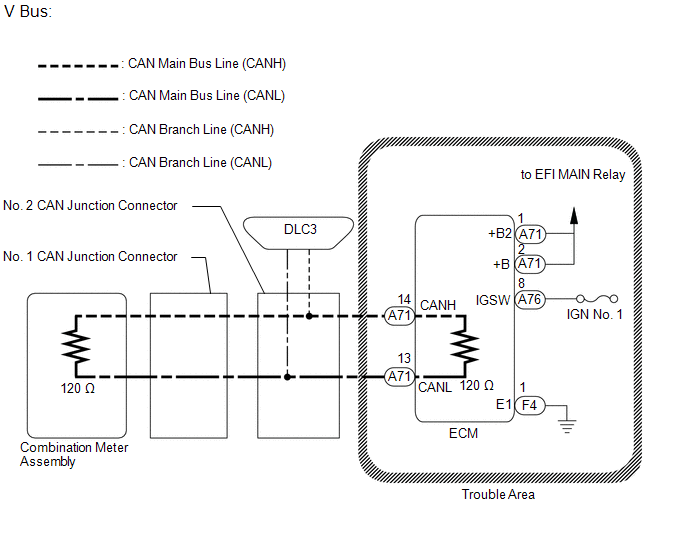

ECM Communication Stop Mode [09/2014 - 10/2015]: Wiring Diagram

GTY517428

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
