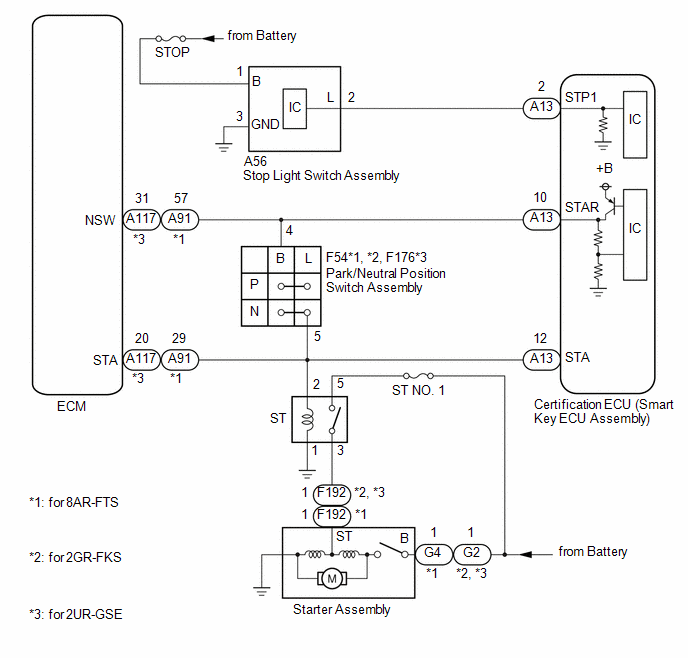

Engine does not Start [10/2022 - ]: Wiring Diagram

GTY1138242

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
