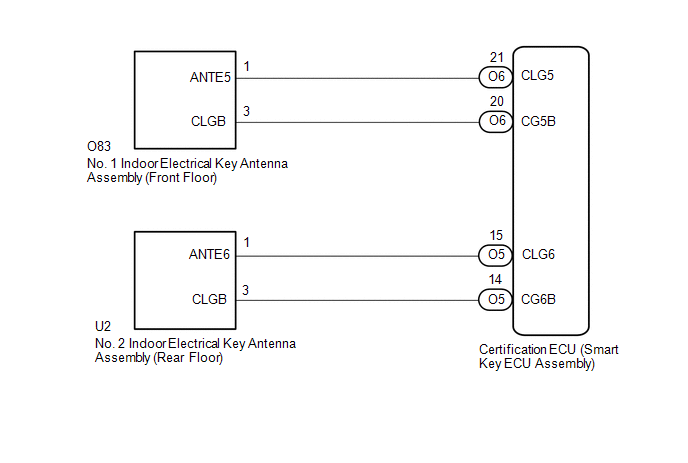

Room Oscillator does not Recognize Key [09/2014 - 10/2022]: Wiring Diagram

GTY506708

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
