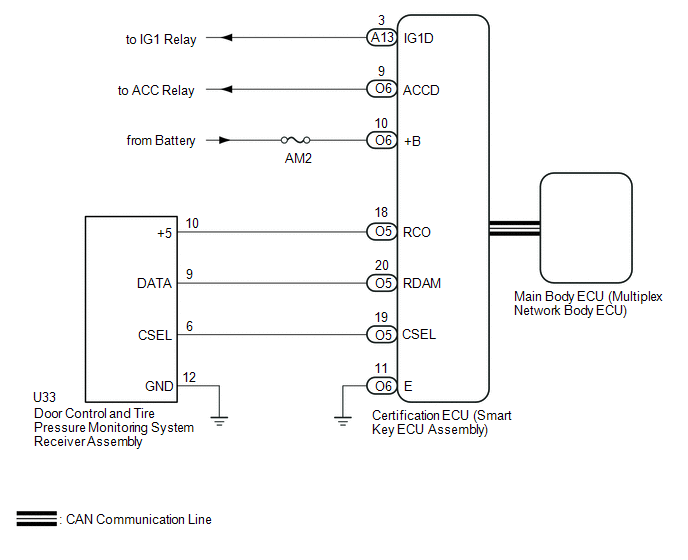

All Door Entry Lock/Unlock Functions and Wireless Functions do not Operate [09/2014 - 09/2020]: Wiring Diagram

GTY513142

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
