Installation [09/2014 - ]: Procedure

HINT:

The occupant detection sensor cannot be removed from the front seat cushion pad with cover RH as they are a unit.

1. Temporarily install the occupant detection sensor (front seat cushion pad with cover RH).
   NOTE:

   Be careful not to damage the front seat cushion pad with cover RH.

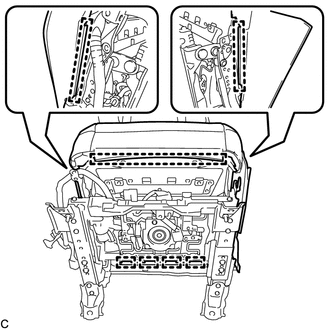

2. Engage the 7 hooks.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

3. Engage the hook.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

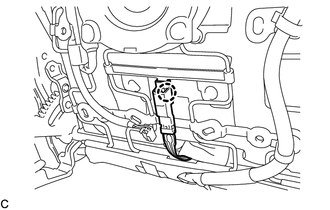

4. Install the clip.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

5. Engage the claw to install the connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

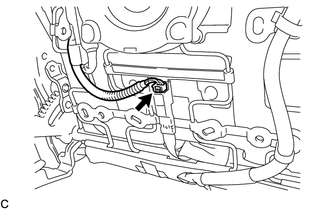

6. Connect the connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

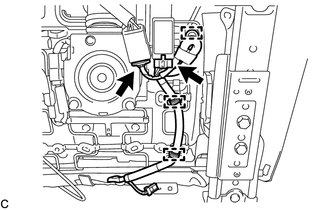

7. w/ Seat Heater System:
   1. Connect the 2 connectors.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   2. Engage the 3 clamps.
   3. Engage the clamp.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   4. Connect the connector.
8. Engage the fastener to secure the front seat airbag assembly wire harness.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Fastener

HINT:

Use the same procedure as for the driver seat.

See step  39 [09/2014 - 11/2017], or see step  39 [11/2017 - ]

HINT:

Use the same procedure as for the driver seat.

See step  40 [09/2014 - 11/2017], or see step  40 [11/2017 - ]

HINT:

Use the same procedure as for the driver seat.

See step  41 [09/2014 - 11/2017], or see step  41 [11/2017 - ]

HINT:

Use the same procedure as for the driver seat

See step  42 [09/2014 - 11/2017], or see step  42 [11/2017 - ]

HINT:

Use the same procedure as for the driver seat.

Refer to INSTALLATION [09/2014 - ]
