Pattern Select Switch Snow Mode Circuit [09/2014 - 11/2017]: Wiring Diagram

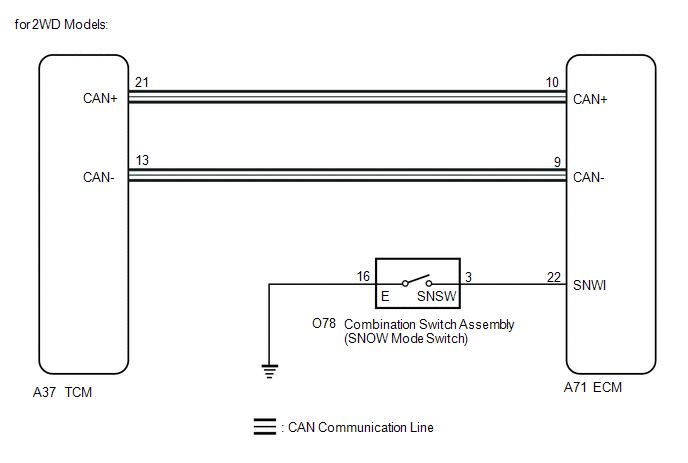

GTY519693

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

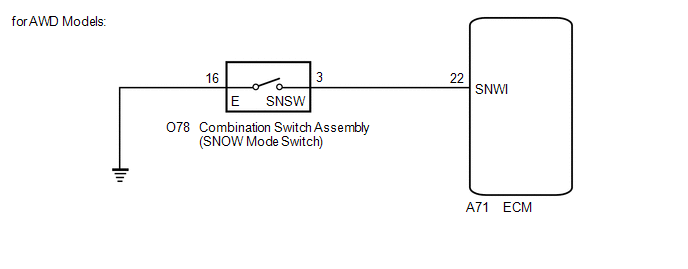

GTY513036

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
