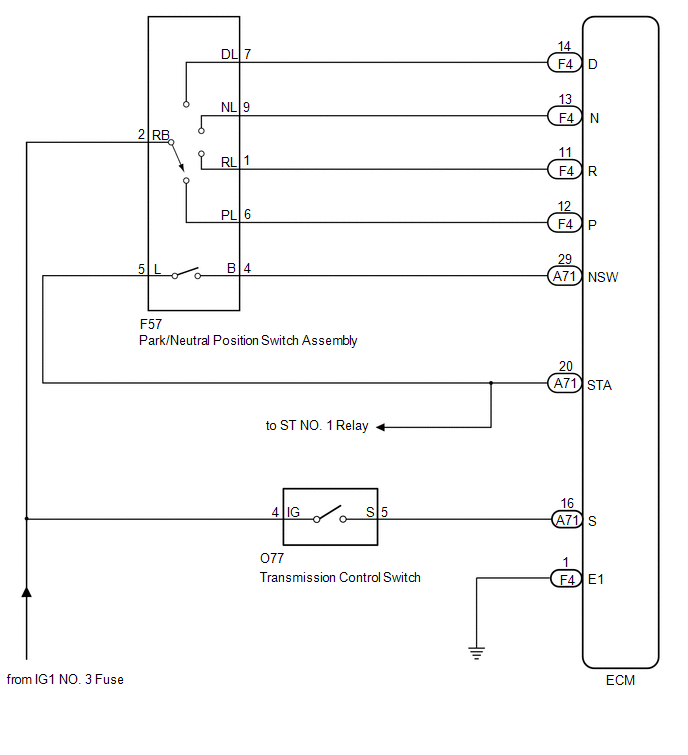

DTC P0705: Transmission Range Sensor Circuit (PRNDL Input) [10/2015 - 11/2017]: Wiring Diagram

GTY624970

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
