Components [10/2015 - ]

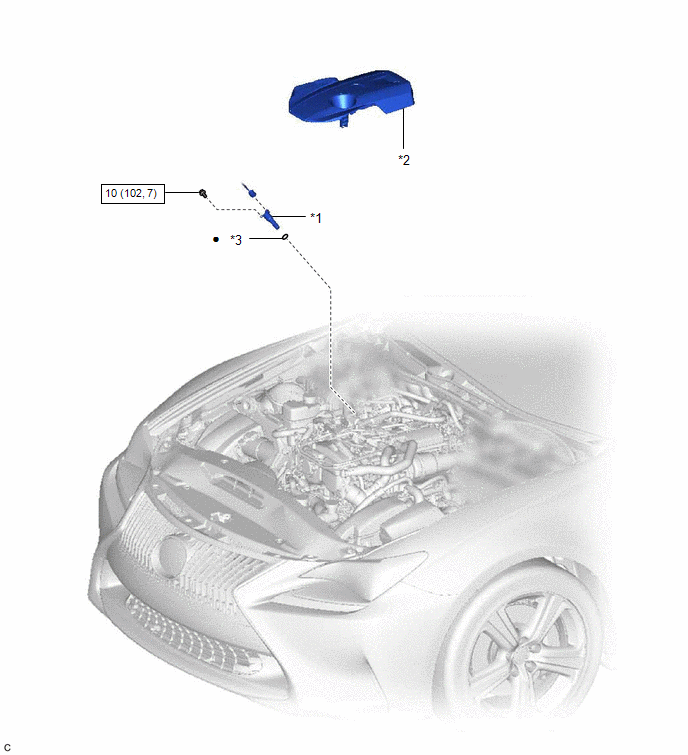

Fig 1: Camshaft Oil Control Valve (For Exhaust Side) Replacement Components With Torque Specifications
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY | *2 | NO. 1 ENGINE COVER SUB-ASSEMBLY |
| *3 | O-RING | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part |
