Components [10/2022 - ]

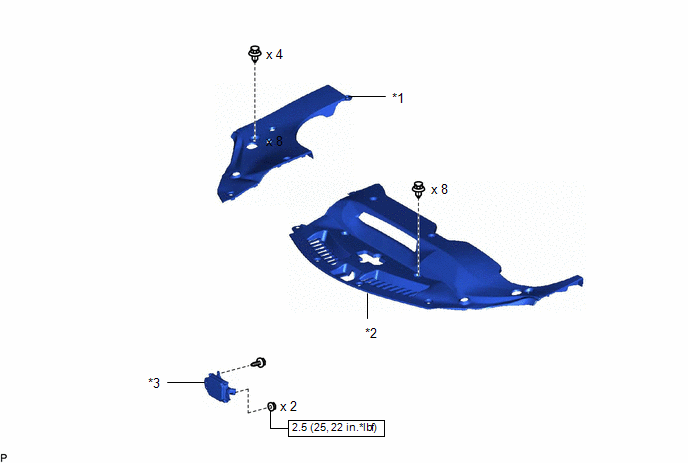

Fig 1: Millimeter Wave Radar Sensor Replacement Components With Torque Specifications [10/2022 - ]
GTY1138473Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 ENGINE ROOM SIDE COVER *2 COOL AIR INTAKE DUCT SEAL
*3 MILLIMETER WAVE RADAR SENSOR ASSEMBLY - -
N.m (kgf/cm, ft.lbf): Specified torque - -
