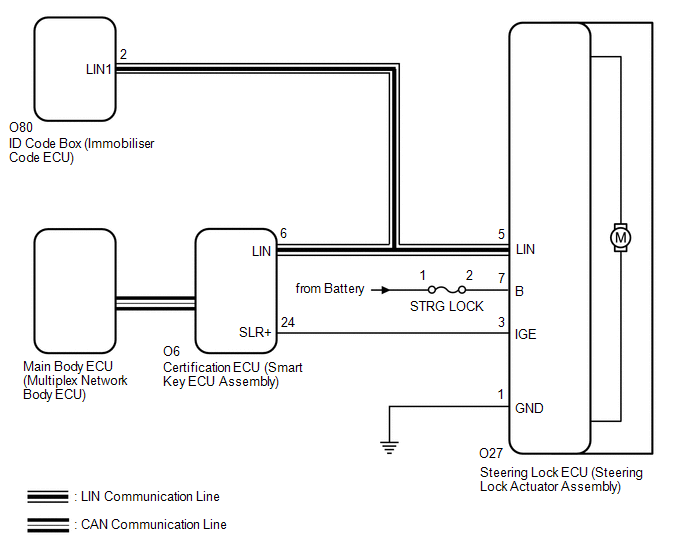

Steering Lock does not Lock [09/2014 - 10/2022]: Wiring Diagram

GTY511059

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
