Steering Pad Switch
>>
Components [11/2017 - ]
Components [11/2017 - ]

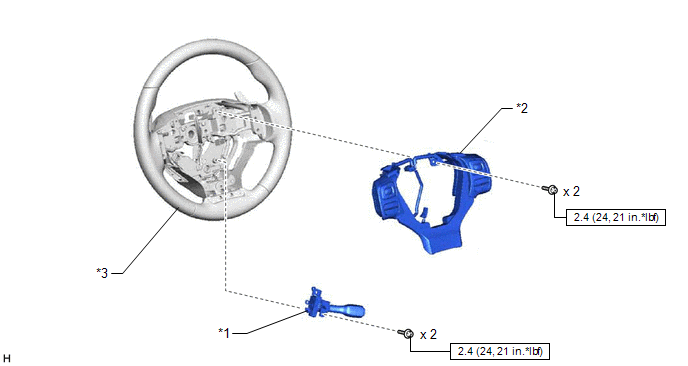

Fig 1: Steering Pad Switch Replacement Components With Torque Specifications [11/2017 - ]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout
Description
Callout
Description
*1
CRUISE CONTROL MAIN SWITCH
*2
STEERING PAD SWITCH ASSEMBLY
*3
STEERING WHEEL SUB-ASSEMBLY
-
-
N.m (kgf/cm, ft.lbf): Specified torque
-
-
