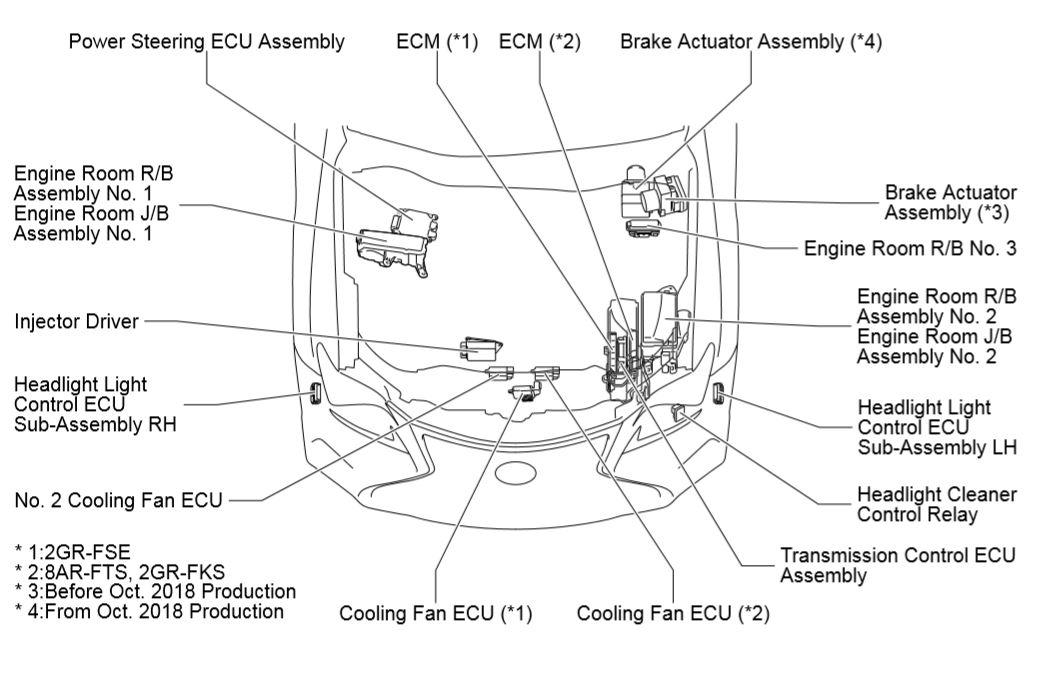

Engine Room Relay Block Assembly And Engine Room Junction Block Assembly No. 1- Right Engine Compartment: Notes

For additional information, refer to Figure.

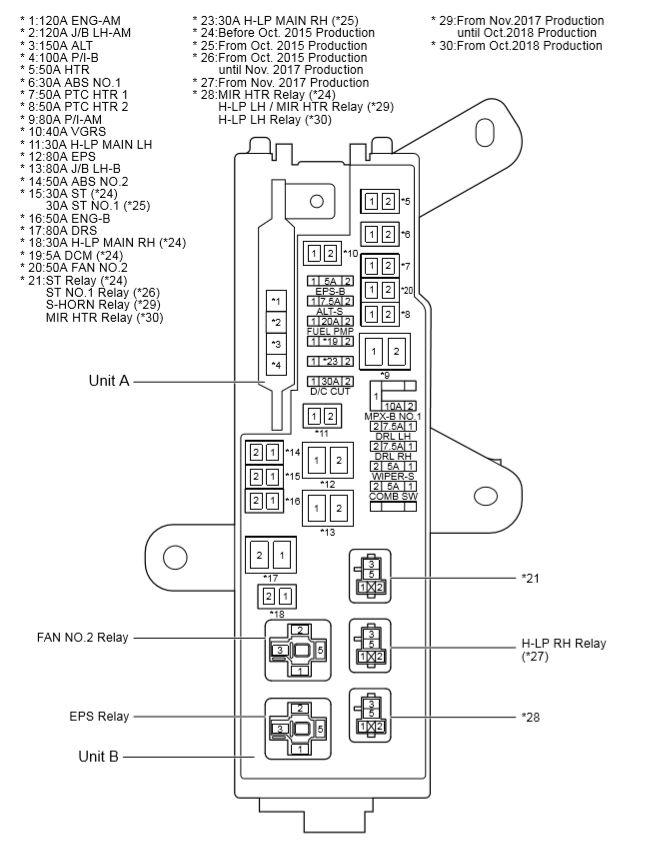

Fig 1: Engine Room R/B And J/B No. 1 Fuse & Relay Identification (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ENGINE ROOM R/B AND J/B No. 1 RELAY IDENTIFICATION

RELAY DESCRIPTION
EPS Relay
FAN NO. 2 Relay
H-LP RH Relay
ST Relay
ST NO. 1 Relay
S-HORN Relay
MIR HTR Relay
H-LP LH Relay

Engine Room R/B And J/B No. 1 Fuse Identification Legend

FUSE
5A	COMB SW
5A	DCM
5A	EPS-B
5A	WIPER-S
7.5A	DRL LH
7.5A	DRL RH
10A	MPX-B NO. 1
20A	FUEL PMP
30A	ABS NO. 1
30A	D/C CUT
30A	H-LP MAIN LH
30A	H-LP MAIN RH
30A	ST
30A	ST NO. 1
40A	VGRS
50A	ABS NO. 2
50A	ENG-B
50A	HTR
50A	PTC HTR 1
50A	PTC HTR 2
80A	DRS
80A	EPS
80A	J/B LH-B
80A	P/I-AM
100A	P/I-B
120A	ENG-AM
120A	J/B LH-AM
150A	ALT

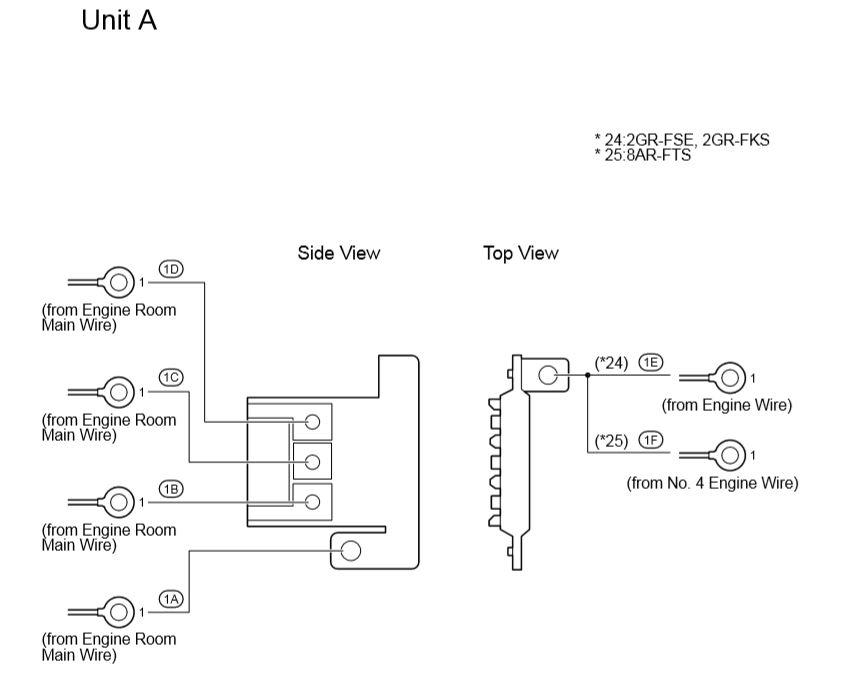

Fig 2: Engine Room R/B And Engine Room J/B Assembly No. 1 (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
