Instrument Panel Junction Block Assembly - Instrument Panel Reinforcement: Notes

For additional information, refer to Figure.

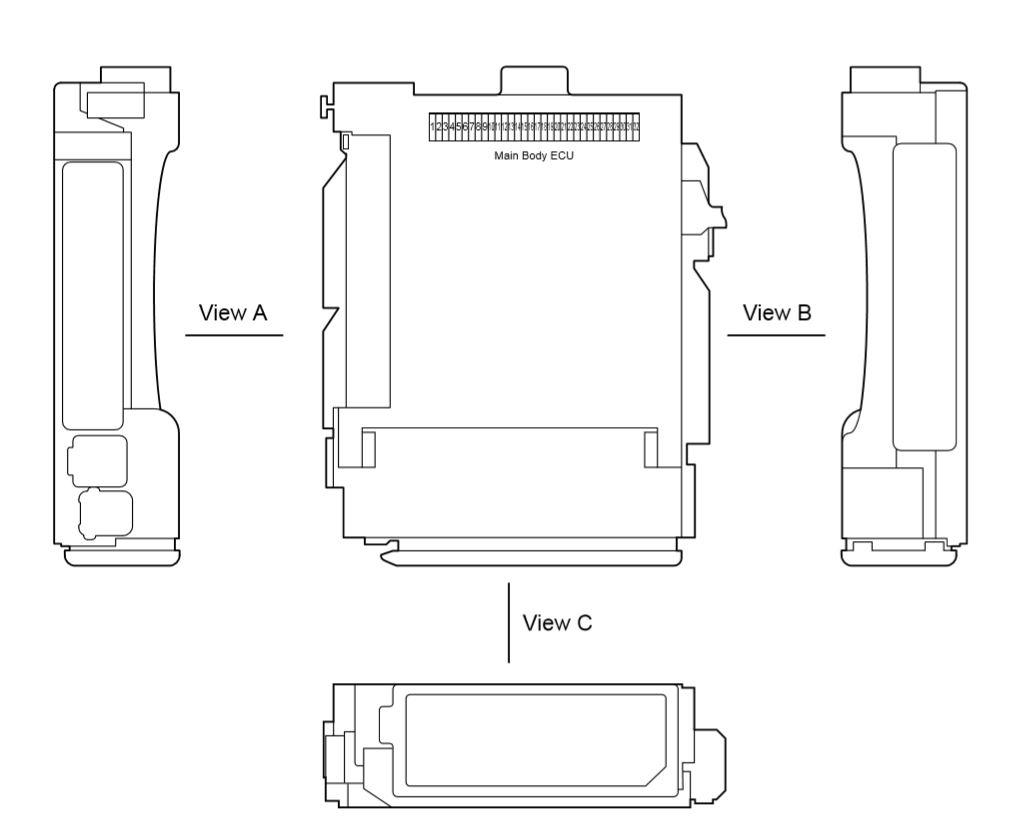

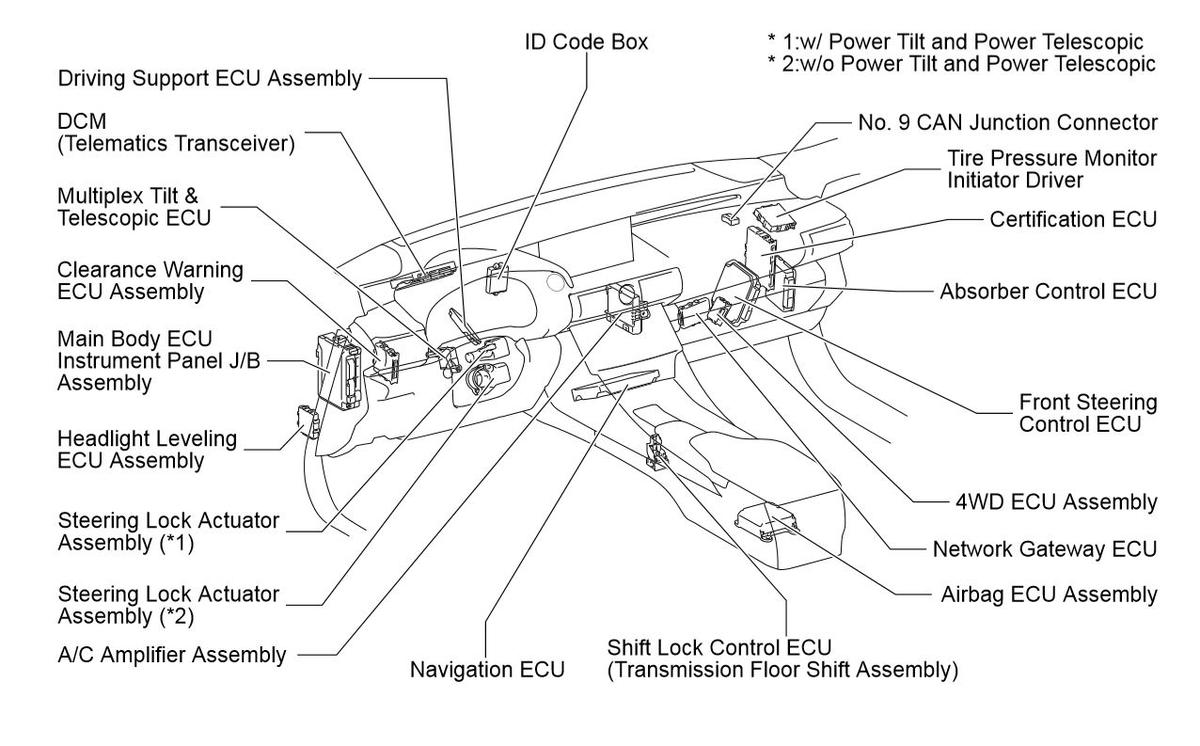

Fig 1: Instrument Panel J/B Assembly

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

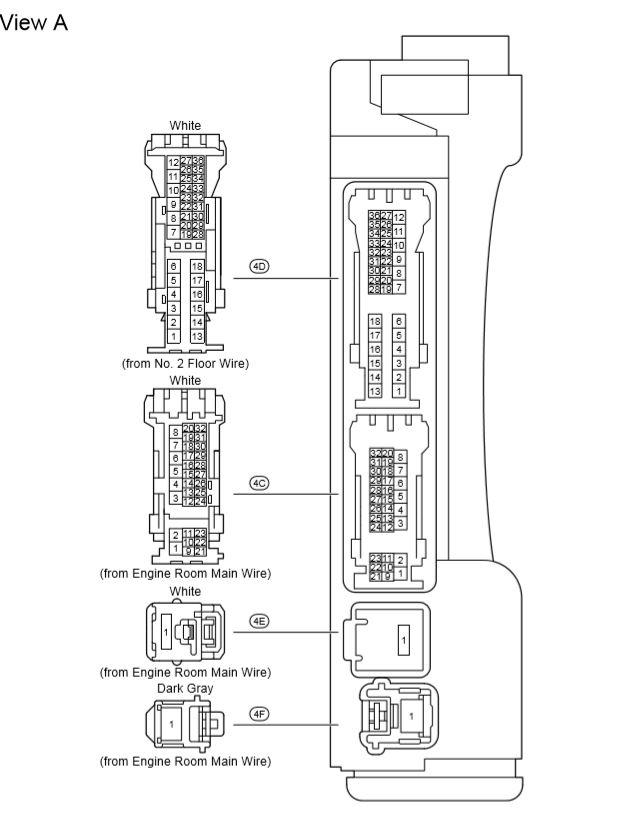

Fig 2: Instrument Panel J/B Assembly (View A)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

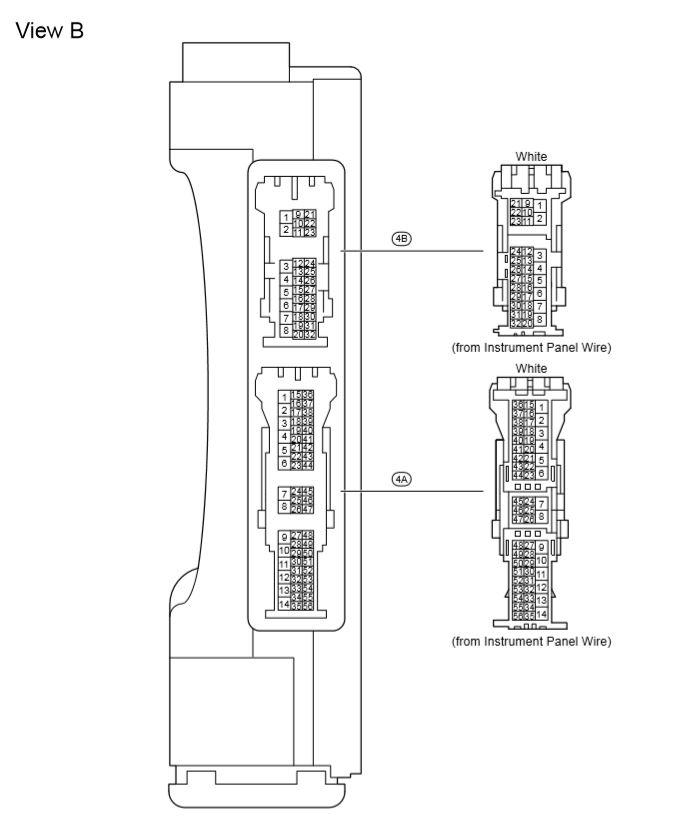

Fig 3: Instrument Panel J/B Assembly (View B)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

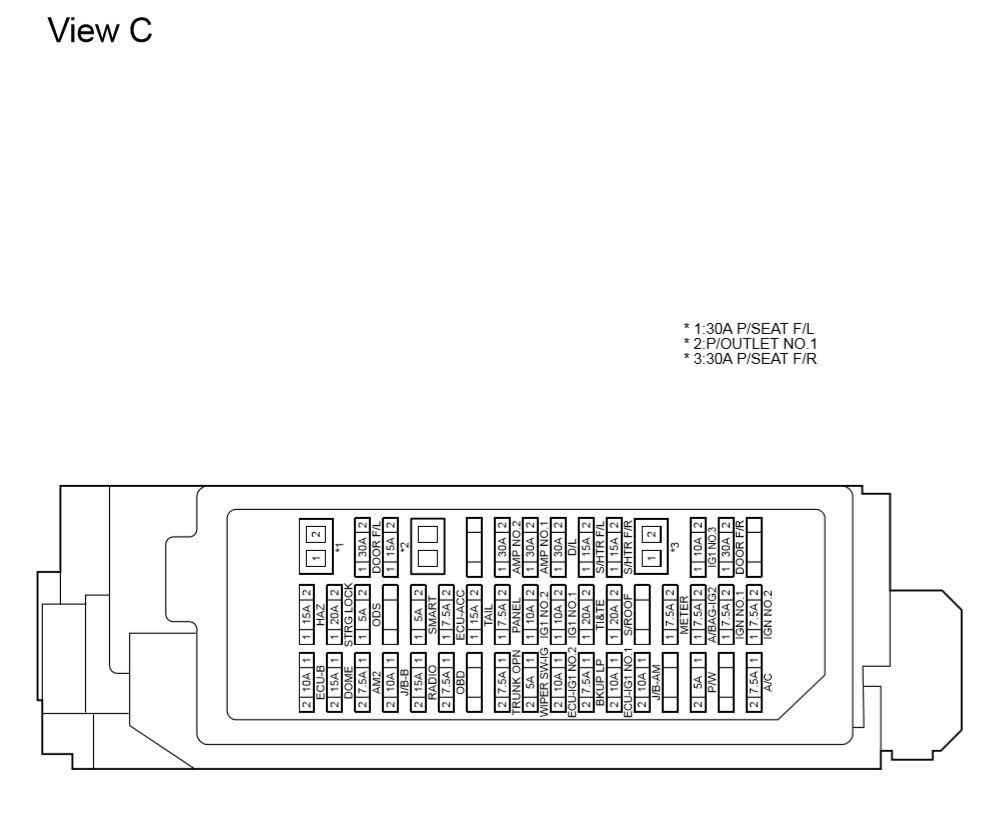

Fig 4: Instrument Panel J/B Fuse Identification (View C)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Instrument Panel Junction Block Assembly Fuse Identification Legend

FUSE
5A	ODS
5A	P/W
5A	SMART
5A	WIPER SW-IG
7, 5A	A/BAG-IG2
7.5A	A/C
7.5A	AM2
7.5A	BKUP LP
7.5A	ECU-ACC
7.5A	IGN NO. 1
7.5A	IGN NO. 2
7.5A	METER
7.5A	OBD
7.5A	PANEL
7.5A	TRUNK OPN
10A	ECU-B
10A	ECU-IG1 NO. 1
10A	ECU-IG1 NO. 2
10A	IG1 NO. 1
10A	IG1 NO. 2
10A	IG1 NO. 3
10A	J/B-AM
10A	J/B-B
15A	DOME
15A	HAZ
15A	P/OUTLET NO. 1
15A	RADIO
15A	S/HTR F/L
15A	S/HTR F/R
15A	TAIL
20A	S/ROOF
20A	STRG ROOF
20A	TI&TE
30A	AMP NO. 1
30A	AMP NO. 2
30A	D/L
30A	DOOR F/L
30A	DOOR F/R
30A	P/SEAT F/L
30A	P/SEAT F/R
