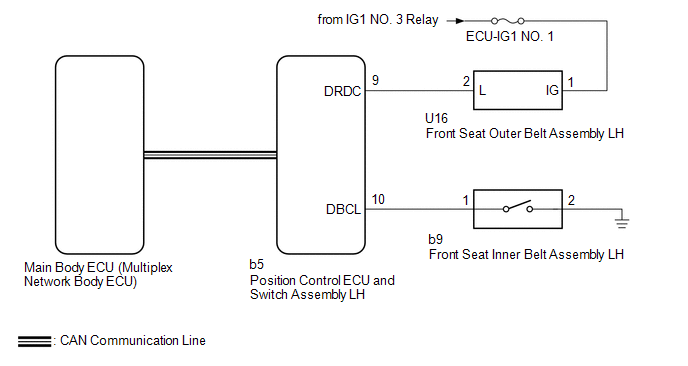

Power Seat Power Easy Access System Function does not Operate [11/2017 - ]: Wiring Diagram

GTY805001

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
