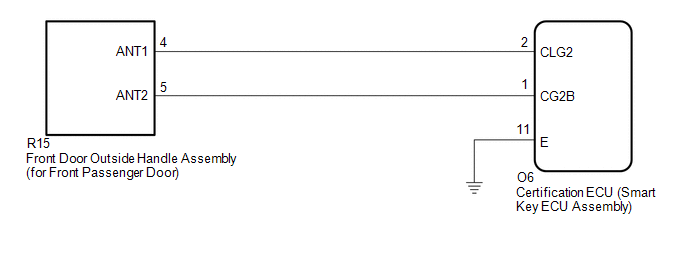

Front Passenger Side Door Entry Lock Function does not Operate [09/2014 - ]: Wiring Diagram

GTY508881

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
