Components [09/2014 - ]

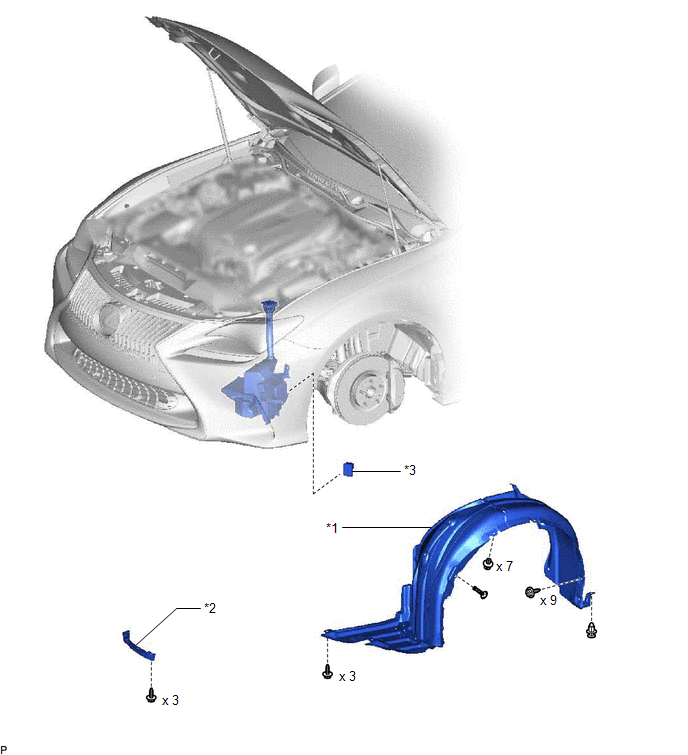

Fig 1: Headlight Cleaner Control Relay Replacement Components
GTY510101Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 FRONT FENDER LINER LH *2 FRONT WHEEL OPENING EXTENSION PAD LH
*3 HEADLIGHT CLEANER CONTROL RELAY - -
