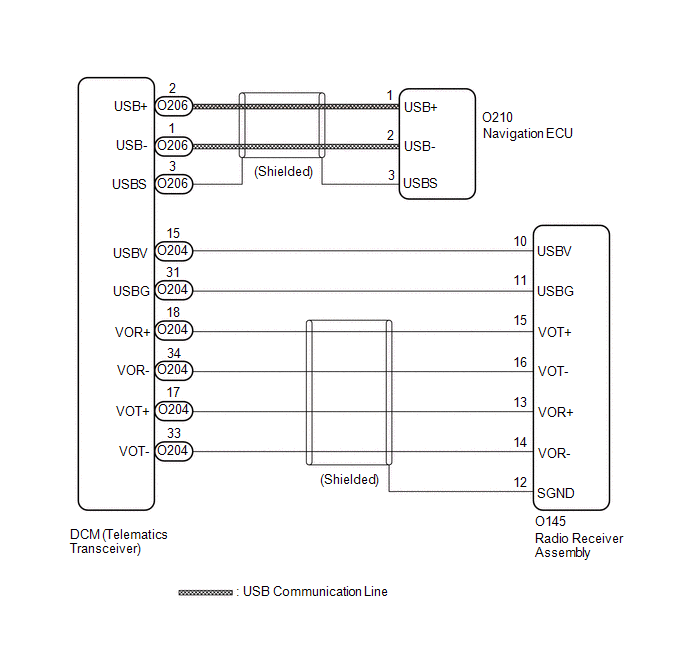

DCM Data Signal Circuit between Navigation ECU and DCM [11/2019 - ]: Wiring Diagram

GTY962914

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
