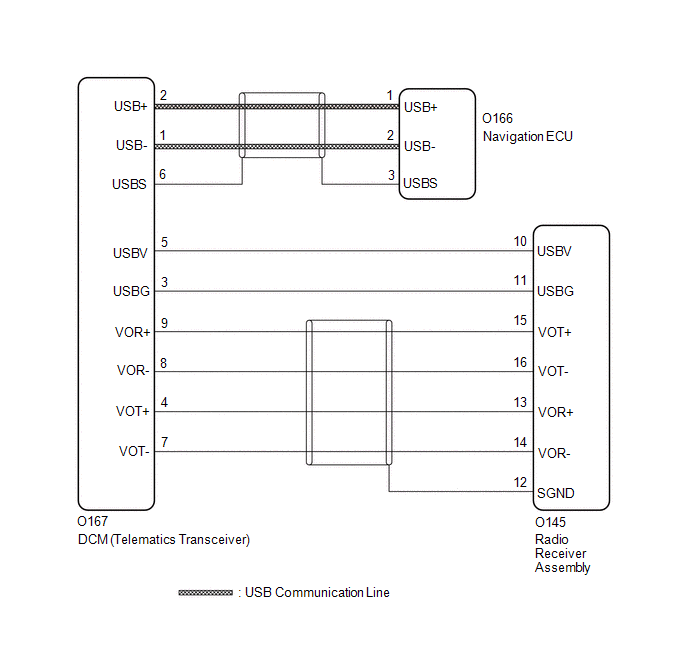

DCM Data Signal Circuit between Navigation ECU and DCM [11/2017 - 11/2019]: Wiring Diagram

GTY817033

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
