System Description [09/2014 - 11/2017]

  1. GENERAL
    1. The blind spot monitor system has a blind spot monitor function and RCTA function.
      1. Blind spot monitor function
        • The blind spot monitor function is a function that assists the driver when changing lanes.

          This function uses quasi-millimeter wave radar to detect vehicles that are traveling in adjacent lanes in the areas that are not visible using the outer rear view mirror assemblies (blind spots) and vehicles that are approaching rapidly from up to 60 m behind this vehicle in the areas that are not visible using the outer rear view mirror assemblies (blind spots).

          The function advises the driver of the existence of a vehicle by illuminating the outer rear view mirror indicator on the outer rear view mirror assembly.

        • If the turn signal switch is operated while the outer rear view mirror indicator on an outer rear view mirror assembly is illuminated, the indicator starts blinking to give additional warning to the driver.
      2. RCTA function
        • The RCTA function is a function that informs the driver a vehicle is approaching from the left or the right at the rear of the vehicle. The function uses quasi-millimeter wave radar to detect the position and relative speed of other vehicles. When the function determines that a vehicle is approaching this vehicle, this function informs the driver using the outer rear view mirror indicators and blind spot monitor buzzer.
  2. FUNCTION OF COMPONENTS
    Component Function
    Blind Spot Monitor Sensor
    • Consists of a 24 GHz radar module and an integrated processing module.
    • Illuminates or blinks the outer rear view mirror indicator on the outer rear view mirror assembly.
    • Sounds the RCTA buzzer (blind spot monitor buzzer) when the RCTA function is operating.
    • Changes the outer rear view mirror indicator on the outer rear view mirror assembly from illuminated to blinking when a turn signal switch operation signal is received from the combination meter assembly with the blind spot monitor function operating.
    • Dims the outer rear view mirror indicator on the outer rear view mirror assembly.
    • Turns on the blind spot monitor indicator on the blind spot monitor main switch (warning canceling switch assembly) when the blind spot monitor main switch (warning canceling switch assembly) is on.
    • Displays the RCTA icon on the multi-display assembly when the RCTA function is operating.
    Outer Rear View Mirror Assembly
    • Outer Mirror (Outer Rear View Mirror Indicator)
    		 Turns on or blinks the indicator based on a signal from the blind spot monitor sensor.
    Blind Spot Monitor Main Switch (Warning Canceling Switch Assembly)
    • Blind Spot Monitor Indicator
    • Turns the blind spot monitor system on or off.
    • Informs the state of the blind spot monitor system by illuminating the blind spot monitor indicator.
    RCTA Buzzer (Blind Spot Monitor Buzzer) Sounds based on a signal from the blind spot monitor sensor.
    Combination Meter Assembly
    • Multi-information Display
    • Transmits a turn signal switch operation signal from the headlight dimmer switch assembly to the blind spot monitor sensor via CAN communication.
    • Displays an error message on the multi-information display if the blind spot monitor detects a malfunction while it is operating.
    Main Body ECU (Multiplex Network Body ECU) Transmits the destination information and the dimmer signal to the blind spot monitor sensor via CAN communication.
    Brake Actuator Assembly
    • Skid Control ECU
    		 Transmits the vehicle speed signal to the blind spot monitor sensor via CAN communication.
    ECM Transmits the shift position signal (R) to the blind spot monitor sensor via CAN communication.
    Spiral Cable with Sensor Sub-assembly Detects the angle of the steering wheel and transmits the resulting signals to the blind spot monitor sensor via CAN communication.
    Front Steering Control ECU* Transmits the VGRS relative angle signal to the blind spot monitor sensor via CAN communication.
    Yaw Rate and Acceleration Sensor Transmits the yaw rate signal to the blind spot monitor sensor via CAN communication.
    Rear Television Camera Assembly Receives the blind spot monitor sensor information via CAN communication and sends it to the multi-display assembly through the video signal cable.
    Multi-display Assembly Receives the video signals from the rear television camera assembly, and displays RCTA icon on the display panel.
    1. *: w/ Variable Gear Ratio Steering System
  3. OPERATION DESCRIPTION
    1. Operation description of the blind spot monitor function
      1. Operation conditions:
        • The blind spot monitor main switch (warning canceling switch assembly) is on.
        • The shift lever is in any position other than R.
        • Vehicle speed is more than approximately 16 km/h (10 mph).
      2. Conditions in which a sensor can detect a vehicle

        The blind spot monitor function indicates detection of a vehicle in the detection area when either condition is met:

        • When a vehicle is detected in an adjacent lane overtaking this vehicle.
        • When a vehicle is detected entering the detection area because it changed lanes.

        HINT:

        The greater the difference in speed between the vehicle and the detected vehicle is, the farther away the other vehicle will be when the notification is given.

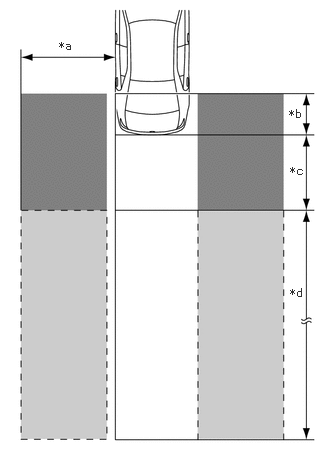

      3. Detection area

        Vehicles in the following areas can be detected:

        GTY520198Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Within Approx. 3.5 m (11.48 ft) from Side of Vehicle
        *b Within Approx. 1 m (3.28 ft) Forward of Rear Bumper
        *c Within Approx. 3 m (9.84 ft) Behind Rear Bumper
        *d Within Approx. 3 m (9.84 ft) to 60 m (196.86 ft) from Rear Bumper
        Detection Area (for Vehicle in Blind Spot)
        Detection Area (for Rapidly Approaching Vehicle from Behind)
    2. Operation description of the RCTA function
      1. Operation conditions:
        • The blind spot monitor main switch (warning canceling switch assembly) is on.
        • The shift lever is in R.
        • The vehicle speed is less than approximately 8 km/h (5 mph).
      2. Conditions in which a sensor can detect a vehicle

        The RCTA function indicates detection of a vehicle in the detection area when both conditions are met:

        • A vehicle is approaching from the right or left at the rear of the vehicle.
        • The vehicle speed is approximately 8 km/h (5 mph) to 28 km/h (17 mph).

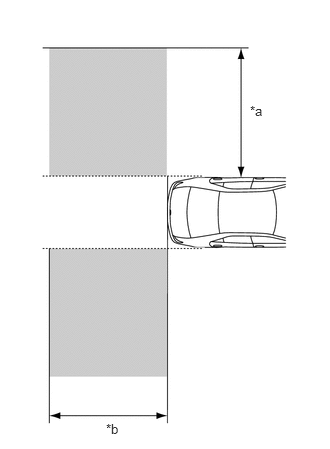

      3. Detection area

        Vehicles in the following areas can be detected:

        GTY443350Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Within Approx. 5.5 to 20 m (18.05 to 65.62 ft) from Side of Vehicle (detection area changes according to vehicle speed)
        *b Within Approx. 6 m (19.69 ft) Behind Rear Bumper
        Detection Area
  4. OPERATION OF OUTER REAR VIEW MIRROR INDICATOR AND RCTA BUZZER (BLIND SPOT MONITOR BUZZER)
    1. Initial check
      1. When the blind spot monitor main switch (warning canceling switch assembly) is turned on with the engine switch on (IG), the outer rear view mirror indicators on the outer rear view mirror assembly illuminate for 3 seconds and the RCTA buzzer (blind spot monitor buzzer) sounds for 1 second.
      2. When the engine switch is turned from off to on (IG) with the blind spot monitor main switch (warning canceling switch assembly) on, the outer rear view mirror indicators on the outer rear view mirror assembly illuminate for 3 seconds.
    2. Operation for each function
      1. Operation for blind spot monitor function
        • When a sensor detects a vehicle in the blind spot area or a vehicle is rapidly approaching the blind spot from behind the vehicle, the outer rear view mirror indicator on the outer rear view mirror assembly illuminates.

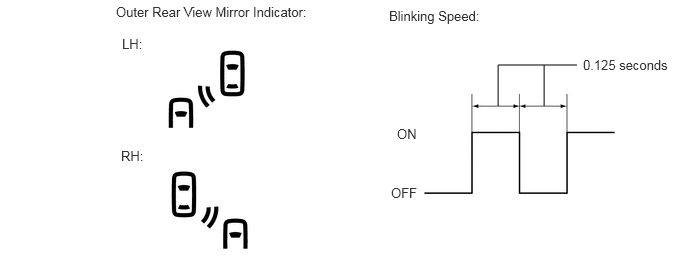

        • If the turn signal switch is operated, while the sensor is detecting a vehicle in the detection area and the outer rear view mirror indicator on the outer rear view mirror assembly is illuminated, the indicator starts blinking as shown in the illustration.
        GTY427112Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Operation for RCTA function

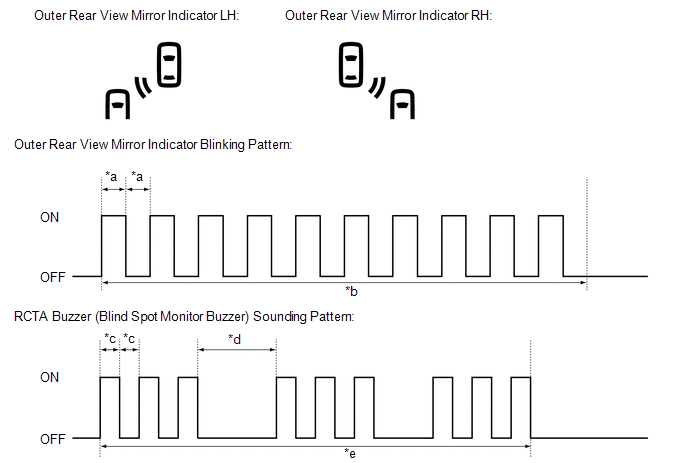

        • When all of the operation conditions for the RCTA function are met, the outer rear view mirror indicators on the outer rear view mirror assembly blink for 2.5 seconds and the RCTA buzzer (blind spot monitor buzzer) sounds for 2.3 seconds as shown in the illustration.
        GTY516323Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a 0.125 Seconds *b 2.5 Seconds
        *c 0.1 Seconds *d 0.4 Seconds
        *e 2.3 Seconds - -
  5. RCTA ICON OUTLINE

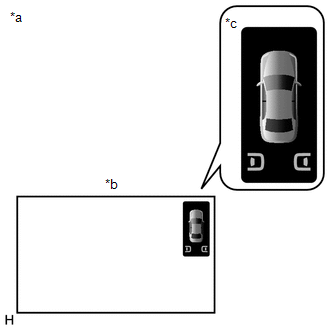

    1. If a vehicle approaching from the right or left at the rear of the vehicle is detected, the icon on the detected side will illuminate.
      GTY498429Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Example
      *b Multi-display Assembly
      *c RCTA Icon
