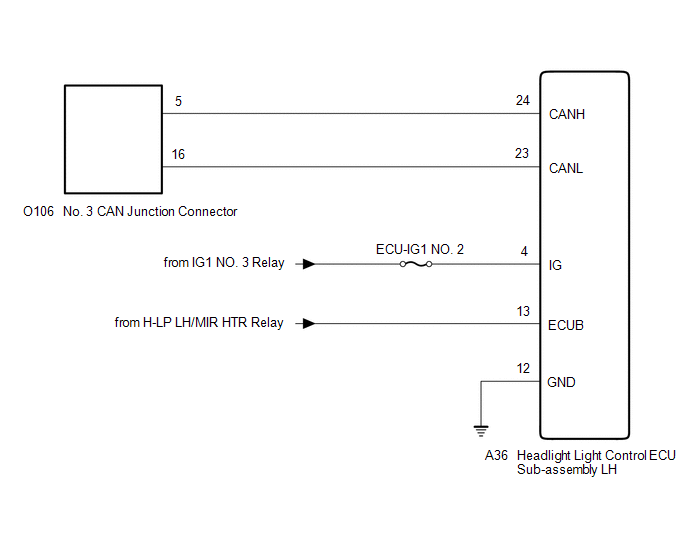

DTC U0182: Lost Communication with Lighting Control Module Front [11/2017 - 10/2018]: Wiring Diagram

GTY820322

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
