Steering Angle Sensor Communication Stop Mode [09/2014 - 11/2017]: Procedure

  1. CHECK FOR OPEN IN CAN BUS LINES (STEERING SENSOR BRANCH LINE)
    1. Disconnect the cable from the negative (-) battery terminal.
    2. Disconnect the O28 or O29 steering sensor connector.

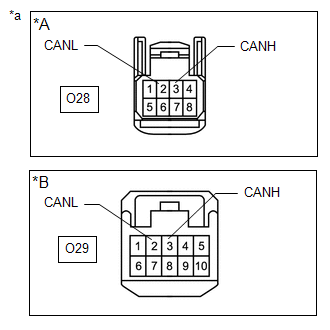

      GTY498722Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A w/o VGRS System
      *B w/ VGRS System
      *a Front view of wire harness connector
      (to Steering Sensor)
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      W/O VGRS SYSTEM

      Tester Connection Condition Specified Condition
      O28-3 (CANH) - O28-2 (CANL) Cable disconnected from negative (-) battery terminal 54 to 69 Ω
      W/ VGRS SYSTEM

      Tester Connection Condition Specified Condition
      O29-3 (CANH) - O29-2 (CANL) Cable disconnected from negative (-) battery terminal 54 to 69 Ω

      Result

      Result
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINES OR CONNECTOR (STEERING SENSOR)

    Result:

    OK

    See step  2

  2. CHECK HARNESS AND CONNECTOR (POWER SOURCE CIRCUIT)
    1. Measure the resistance according to the value(s) in the table below.

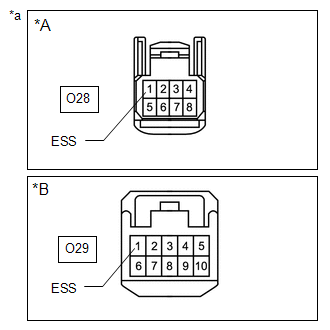

      GTY498717Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A w/o VGRS System
      *B w/ VGRS System
      *a Front view of wire harness connector
      (to Steering Sensor)

      Standard Resistance

      W/O VGRS SYSTEM

      Tester Connection Condition Specified Condition
      O28-1 (ESS) - Body ground Cable disconnected from negative (-) battery terminal Below 1 Ω
      W/ VGRS SYSTEM

      Tester Connection Condition Specified Condition
      O29-1 (ESS) - Body ground Cable disconnected from negative (-) battery terminal Below 1 Ω
    2. Reconnect the cable to the negative (-) battery terminal.
    3. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      W/O VGRS SYSTEM

      Tester Connection Condition Specified Condition
      O28-4 (IG1) - Body ground Engine switch on (IG) 11 to 14 V
      O28-8 (BAT) - Body ground Always 11 to 14 V
      W/ VGRS SYSTEM

      Tester Connection Condition Specified Condition
      O29-4 (IG1) - Body ground Engine switch on (IG) 11 to 14 V
      O29-5 (BAT) - Body ground Always 11 to 14 V

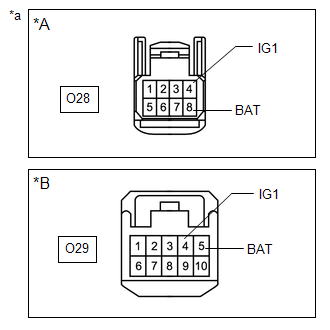

      GTY498718Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A w/o VGRS System
      *B w/ VGRS System
      *a Front view of wire harness connector
      (to Steering Sensor)

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE STEERING SENSOR. Refer to  REMOVAL [09/2014 - ]

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR (POWER SOURCE CIRCUIT)
