Can Communication System - Circuit Tests (2 Of 5)
>>
Can Communication System
>>
Radio Receiver Assembly Communication Stop Mode [09/2014 - 11/2017]
>>
Wiring Diagram

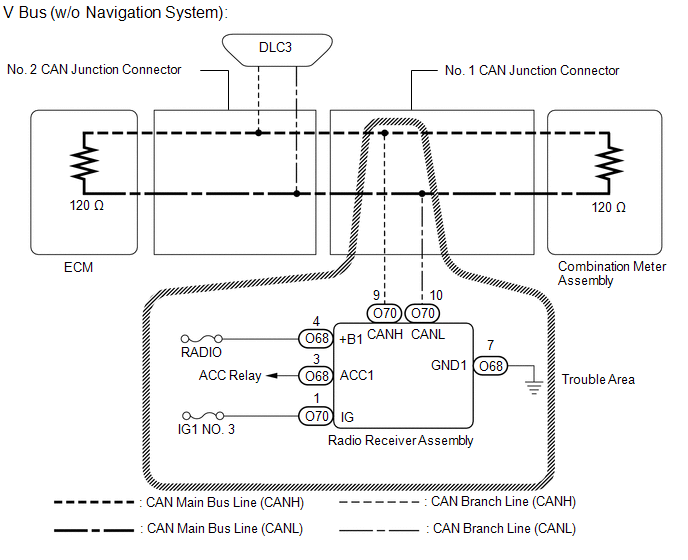

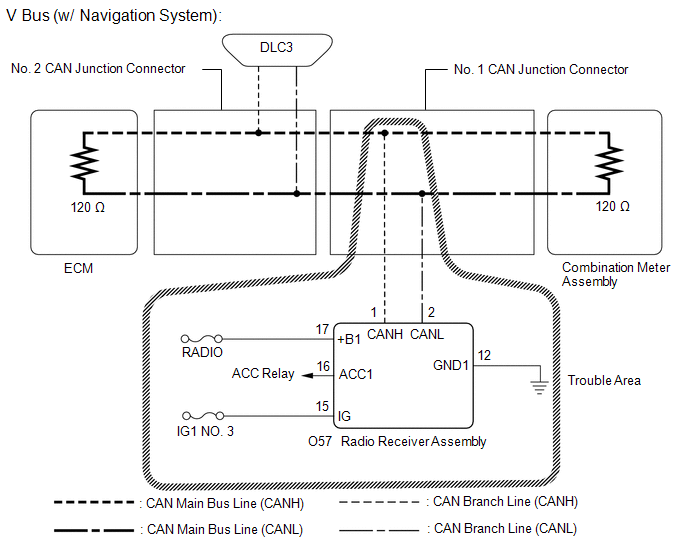

Radio Receiver Assembly Communication Stop Mode [09/2014 - 11/2017]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
