  1. REMOVE STEERING PAD

    Refer to REMOVAL [10/2014 - 05/2019] , or refer to REMOVAL [05/2019 - 07/2020] , or refer to REMOVAL [07/2020 - ]

  2. REMOVE CRUISE CONTROL MAIN SWITCH

    Refer to PROCEDURE - Step 2 [09/2017 - ]

  3. REMOVE STEERING PAD SWITCH ASSEMBLY
    1. Disconnect the connector from the spiral cable with sensor sub-assembly.
      GTY635049Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 screws.
      GTY832666Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

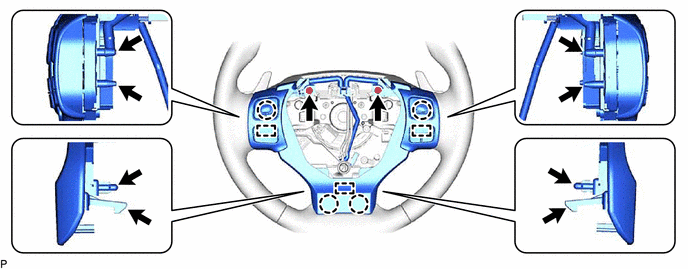

    3. Detach the 3 guide pins and 4 claws and remove the switch assembly.
