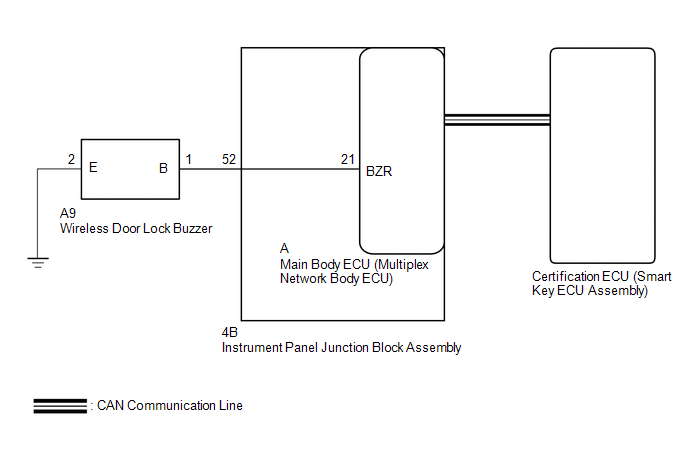

Entry Exterior Alarm and Answer-back Buzzer do not Sound [10/2014 - ]: Wiring Diagram

GTY520258

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
