Components [09/2015 - ]

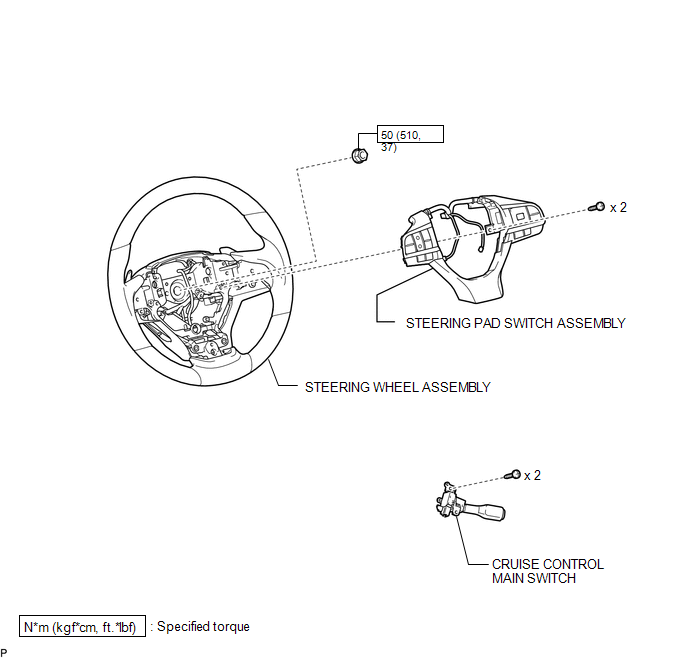

Fig 1: Steering Wheel Assembly And Related Components With Torque Specifications (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

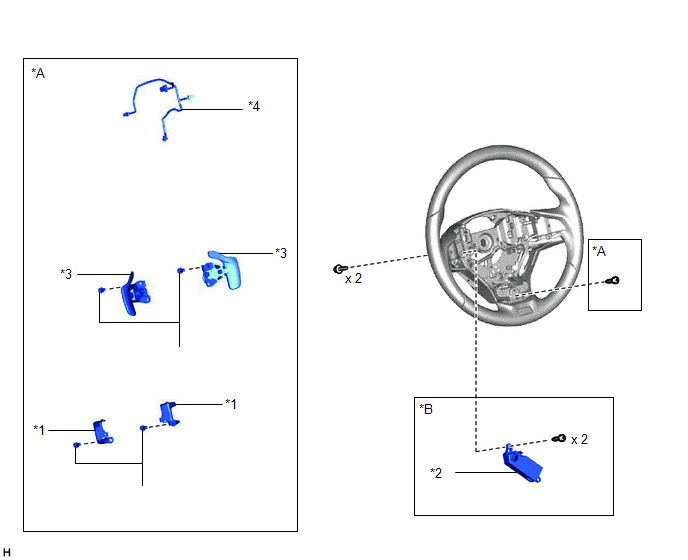

Fig 2: Steering Wheel Assembly And Related Components (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

* A	w/ Shift Paddle Switch	* B	w/ Steering Heater
*1	LOWER NO. 1 STEERING WHEEL BOSS COVER	*2	STEERING VIBRATION AND HEATER ECU
*3	TRANSMISSION SHIFT SWITCH ASSEMBLY	*4	NO. 1 SWITCH WIRE
•	Non-reusable part	*	Precoated Part

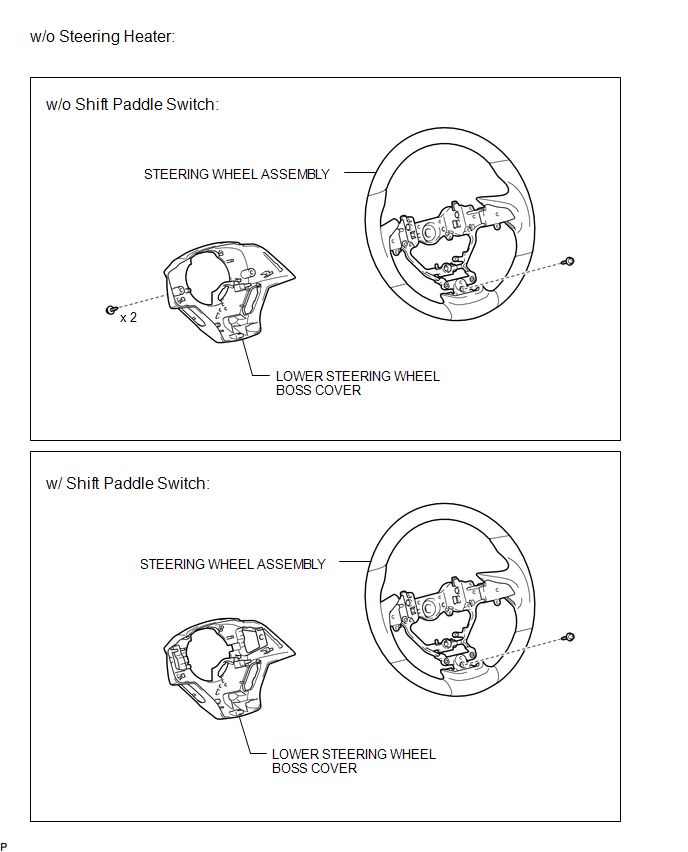

Fig 3: Steering Wheel Replacement Components (3 Of 3)
