Reassembly [09/2015 - ]: Procedure

  1. INSTALL MULTIPLEX TILT AND TELESCOPIC ECU
    1. Install the ECU with the 2 screws.
  2. INSTALL STEERING LOCK ACTUATOR ASSEMBLY

    HINT:

    When replacing the steering lock actuator assembly, perform the key registration. Refer to REGISTRATION [09/2015 - 08/2020] Refer to REGISTRATION [08/2020 - ] .

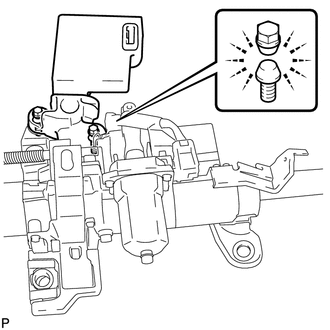

    1. Temporarily install the steering lock actuator assembly with 2 new tapered-head bolts.
      GTY138397Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Tighten the 2 tapered-head bolts until the bolt heads break off.
