Inspection [09/2015 - ]: Procedure

  1. INSPECT STEERING COLUMN ASSEMBLY

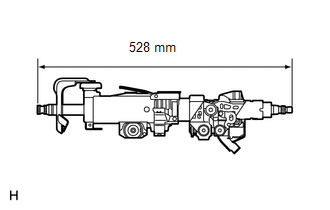

    1. Measure the length of the steering main shaft.
      GTY109502Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard length

      528 mm (1.73 ft.)
