Components [09/2015 - ]

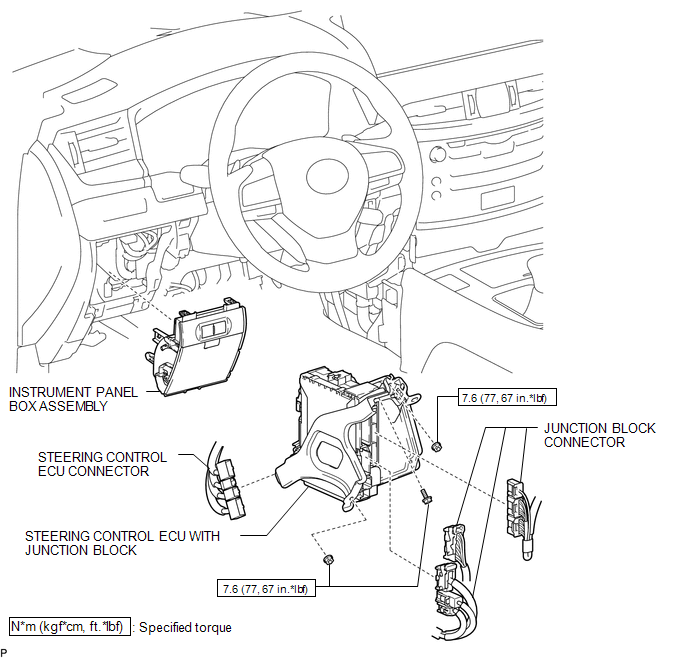

Fig 1: Steering Control ECU Replacement Components With Torque Specifications (1 of 2)
GTY618284Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

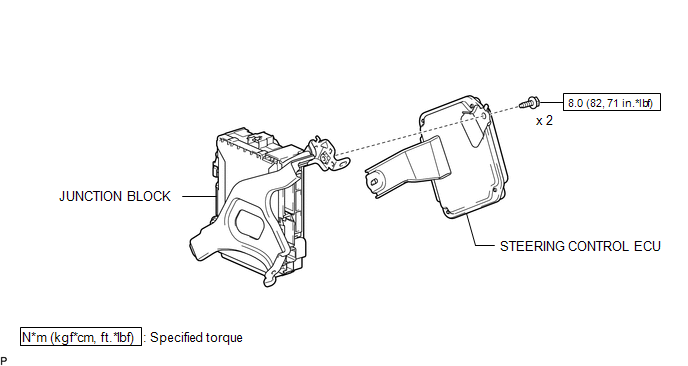

Fig 2: Steering Control ECU Replacement Components With Torque Specifications (2 Of 2)
GTY542293Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
