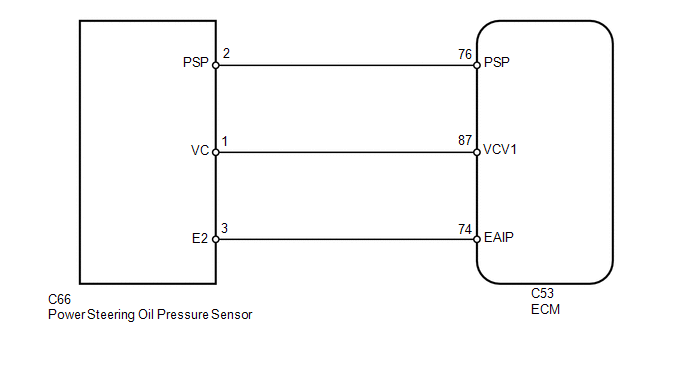

DTC P0550: Power Steering Pressure Sensor Circuit Malfunction; DTC P0552: Power Steering Pressure Sensor Circuit Low Input; DTC P0553: Power Steering Pressure Sensor Circuit High Input [09/2015 - ]: Wiring Diagram

GTY666961Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
