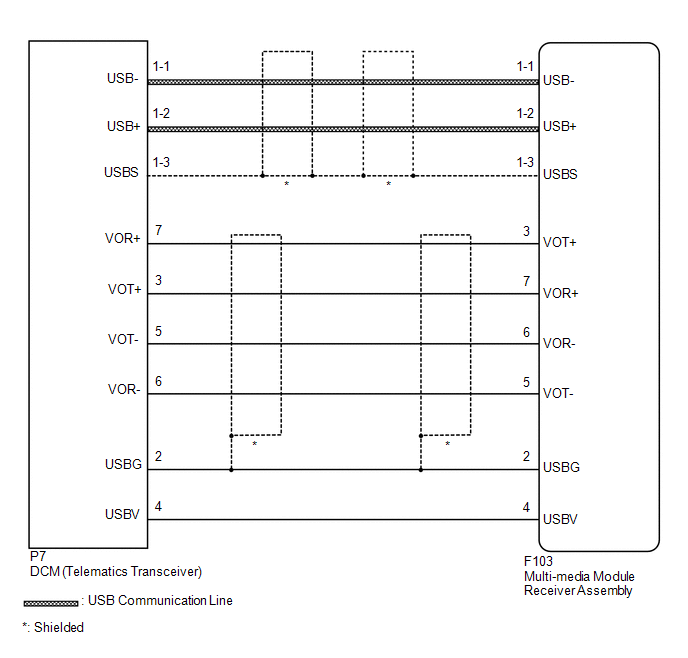

DCM Data Signal Circuit between Navigation ECU and DCM [09/2015 - 08/2017]: Wiring Diagram

GTY640681

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
