DTC B2405: Sub Bus LIN Module Communication Malfunction [09/2015 - ]: Procedure

  1. CLEAR DTC
    1. Clear the DTC.

      Refer to DTC CHECK / CLEAR [09/2015 - ]

      Result

      Proceed to
      NEXT

    Result:

    NEXT

    See step  2

  2. CHECK FOR DTC
    1. Recheck for DTCs.

      Refer to DTC CHECK / CLEAR [09/2015 - ]

      Result

      Result Proceed to
      DTC B2405 is not output A
      DTC B2405 is output B

    Result:

    USE SIMULATION METHOD TO CHECK. Refer to  HOW TO PROCEED WITH TROUBLESHOOTING [09/2015 - ]

    Result:

    See step  3

  3. CHECK HARNESS AND CONNECTOR (NO. 2 MAIN BODY ECU - MAP LIGHT ASSEMBLY)
    1. Disconnect the L33 No. 2 main body ECU connector.
    2. Disconnect the R12 map light assembly connector.
    3. Measure the resistance and voltage according to the value(s) in the tables below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      L33-23 (MPX) - R12-2 (LIN) Always Below 1 Ω
      L33-23 (MPX) or R12-2 (LIN) - Body ground Always 10 kΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  4

  4. CHECK HARNESS AND CONNECTOR (MAP LIGHT ASSEMBLY - BATTERY VOLTAGE AND BODY GROUND)
    1. Disconnect the map light assembly connectors.

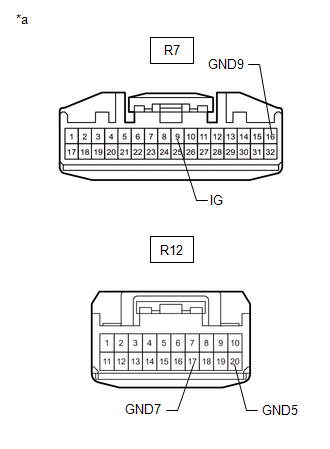

      GTY950609Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to Map Light Assembly)
    2. Measure the resistance and voltage according to the value(s) in the tables below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      R12-20 (GND5) - Body ground Always Below 1 Ω
      R12-17 (GND7) - Body ground Always Below 1 Ω
      R7-16 (GND9) - Body ground Always Below 1 Ω
    3. Measure the resistance and resistance according to the value(s) in the tables below.

      Standard Voltage

      Tester Connection Switch Condition Specified Condition
      R7-9 (IG) - Body ground Engine switch on (IG) 11 to 14 V

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  5

  5. REPLACE MAP LIGHT ASSEMBLY
    1. Temporarily replace the map light assembly with a new or normally functioning one.

      Refer to REMOVAL [09/2015 - ]

    2. Clear the DTC.

      Refer to DTC CHECK / CLEAR [09/2015 - ]

      Result

      Proceed to
      NEXT

    Result:

    NEXT

    See step  6

  6. CHECK FOR DTC
    1. Recheck for DTCs.

      Refer to DTC CHECK / CLEAR [09/2015 - ]

      Result

      Result Proceed to
      DTC B2405 is not output A
      DTC B2405 is output B

    Result:

    END (MAP LIGHT ASSEMBLY IS DEFECTIVE)

    Result:

    REPLACE NO. 2 MAIN BODY ECU. Refer to  REMOVAL [09/2015 - ]
