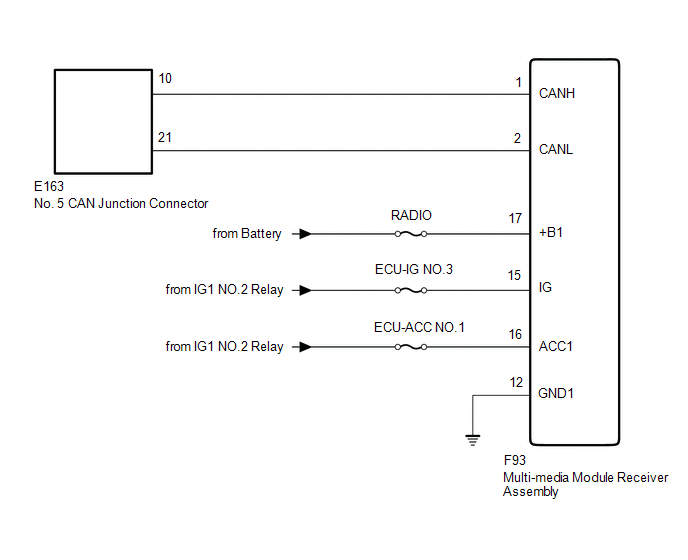

Multi-media Module Receiver Assembly Communication Stop Mode [09/2015 - ]: Wiring Diagram

GTY633901

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
