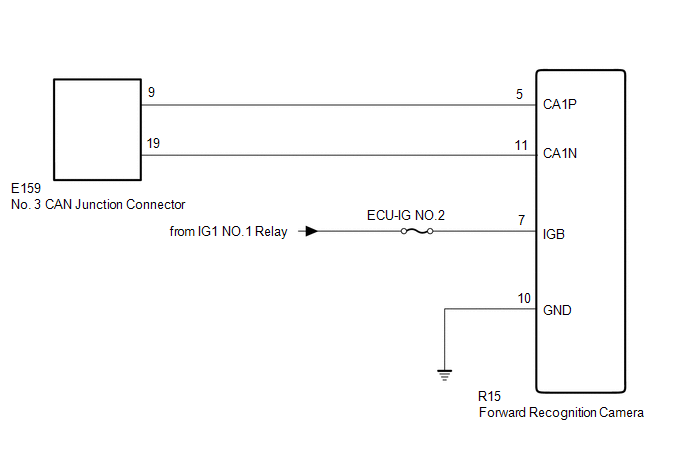

Front Camera Module Communication Stop Mode [09/2015 - ]: Wiring Diagram

GTY673006

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
