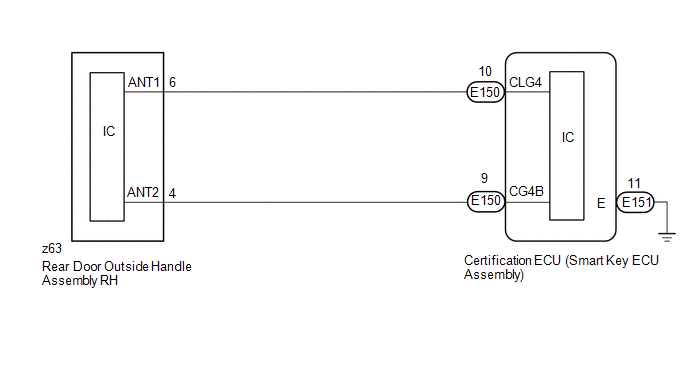

Rear Door RH Entry Lock Function does not Operate [09/2015 - ]: Wiring Diagram

GTY822556

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
