Rear Door LH Entry Lock Function does not Operate [09/2015 - ]: Procedure
- CHECK POWER DOOR LOCK CONTROL SYSTEM
- When the door control switch on the multiplex network master switch assembly is operated, check that the doors unlock and lock according to the switch operation. Refer to OPERATION CHECK [09/2015 - ]
.
OK
Door locks operate normally.
Result:
NG
GO TO POWER DOOR LOCK CONTROL SYSTEM
Refer to HOW TO PROCEED WITH TROUBLESHOOTING [09/2015 - ] )
Result:
OK
See step 2
- When the door control switch on the multiplex network master switch assembly is operated, check that the doors unlock and lock according to the switch operation. Refer to OPERATION CHECK [09/2015 - ]
.
- READ VALUE USING TECHSTREAM (DR-DOOR TRIGGER SWITCH)
- Connect the Techstream to the DLC3.
- Turn the engine switch on (IG).
- Turn the Techstream on.
- Enter the following menus: Body Electrical / Smart Access / Data List.
- Read the Data List according to the display on the Techstream.SMART ACCESS
Tester Display Measurement Item/Range Normal Condition Diagnostic Note Dr-Door Trigger Switch Rear door LH touch sensor (lock sensor) / ON or OFF ON: Rear door LH touch sensor (lock sensor) touched
OFF: Rear door LH touch sensor (lock sensor) not touched- Displays whether the lock sensor is on or off (even if the sensor is touched and contact is maintained, "ON" is displayed only momentarily).
- Use this Data List item to help determine if there is a lock sensor malfunction when the entry lock function does not operate.
HINT:
When checking the operation of the entry lock function several times, it can be operated up to 2 times consecutively. To operate the function 3 times or more consecutively, the doors need to be unlocked once. However, this is only for the entry lock function, other door lock operations, such as a wireless door lock operation can be performed consecutively.
OK
The Techstream display changes correctly in response to the operation of the rear door outside handle assembly LH.
Result:
OK
REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)
Refer to REMOVAL [09/2015 - ] )
Result:
NG
See step 3
- CHECK HARNESS AND CONNECTOR (CERTIFICATION ECU [SMART KEY ECU ASSEMBLY] - REAR DOOR OUTSIDE HANDLE ASSEMBLY LH)
- Disconnect the E150 certification ECU (smart key ECU assembly) connector.
- Disconnect the z62 rear door outside handle assembly LH connector.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition E150-8 (CLG3) - z62-6 (ANT1) Always Below 1 Ω E150-7 (CG3B) - z62-4 (ANT2) Always Below 1 Ω E150-8 (CLG3) or z62-6 (ANT1) - Body ground Always 10 kΩ or higher E150-7 (CG3B) or z62-4 (ANT2) - Body ground Always 10 kΩ or higher - Reconnect the z62 rear door outside handle assembly LH connector.
- Reconnect the E150 certification ECU (smart key ECU assembly) connector.
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
Result:
OK
See step 4

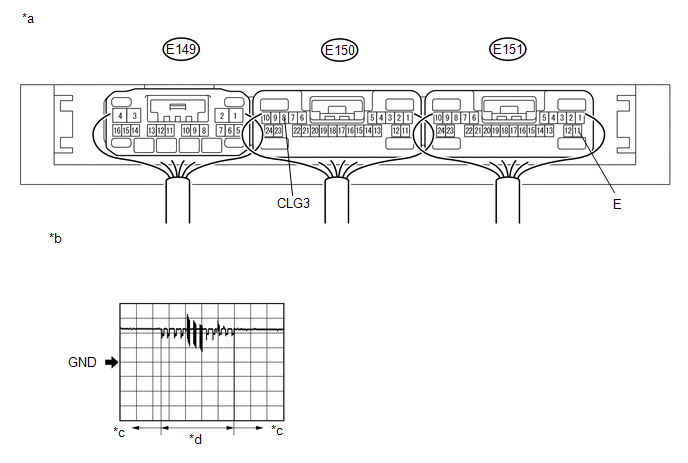

- CHECK REAR DOOR OUTSIDE HANDLE ASSEMBLY LH (INPUT TO REAR DOOR LH LOCK SENSOR) TEXT IN ILLUSTRATION
* a Component with harness connected
(Certification ECU [Smart Key ECU Assembly])* b Waveform 1 * c Lock sensor not touched * d Lock sensor touched - Using an oscilloscope, check the waveform.
OK
Tester Connection Switch Condition Tool Setting Specified Condition E150-8 (CLG3) - E151-11 (E) Procedure: - Engine switch off
- Electrical key transmitter sub-assembly brought outside vehicle
- All doors closed
- All doors locked through wireless operation (electrical key transmitter sub-assembly brought outside detection area*)
- Rear door LH lock sensor touched
5 V/DIV., 40 ms/DIV. Pulse generation (See waveform 1) - *: For details about the entry function detection area, refer to Operation Check. Refer to DISASSEMBLY [09/2015 - ] .
Result:
OK
REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)
Refer to REMOVAL [09/2015 - ] )
Result:
NG
REPLACE REAR DOOR OUTSIDE HANDLE ASSEMBLY LH (REAR DOOR LH)
Refer to DISASSEMBLY [09/2015 - ] )
- Using an oscilloscope, check the waveform.
