Installation [09/2015 - ]: Procedure

  1. INSTALL PRE-COLLISION BRAKE CANCEL SWITCH ASSEMBLY

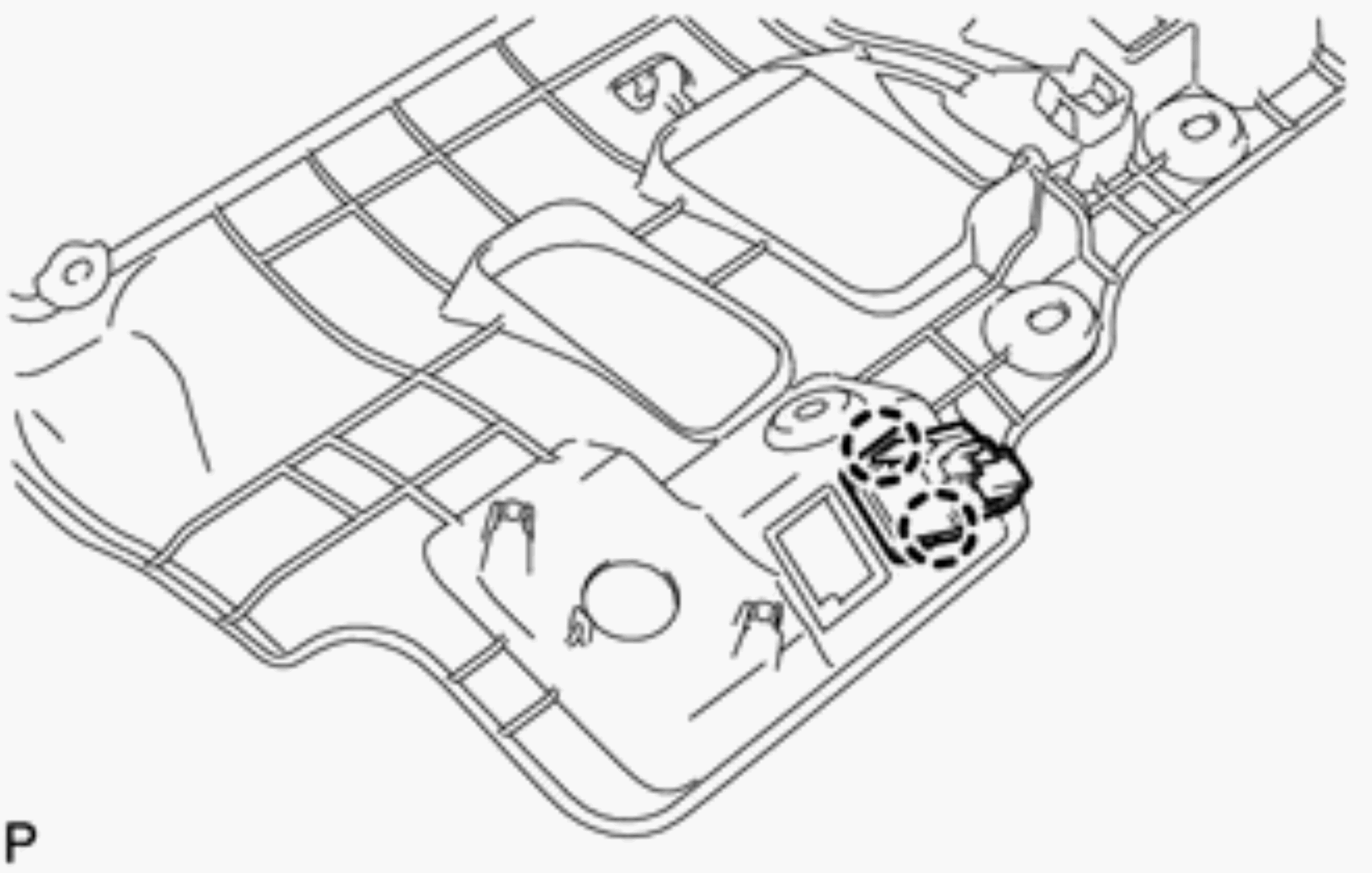

    GTY646342Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Attach the 2 claws to install the switch.
  2. INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 27
