DTC U1119: Lost Communication with Object Recognition ECU (CAN); DTC U1120: Lost Communication with Object Recognition Camera [09/2015 - ]: Wiring Diagram

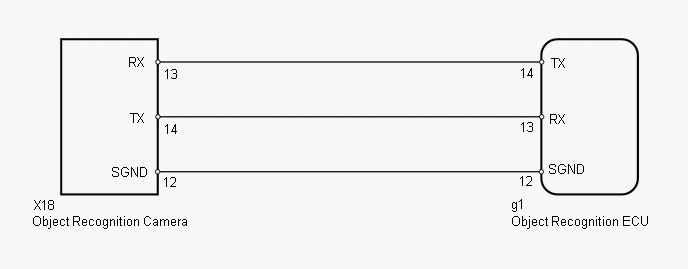

Fig 1: Object Recognition Camera Circuit Diagram
GTY663766Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
