DTC C1A6A: Infrared Signal Circuit [09/2015 - ]: Wiring Diagram

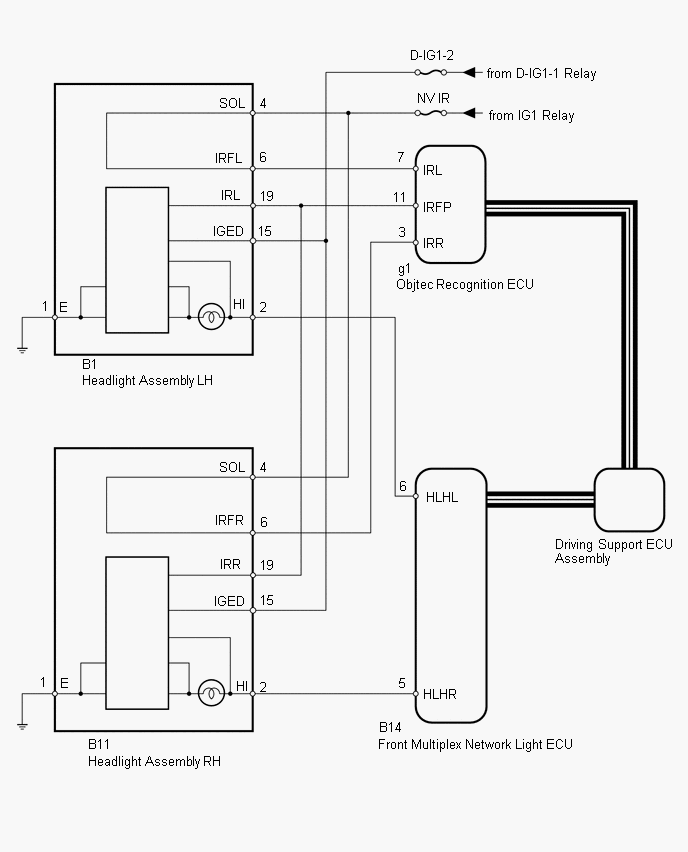

Fig 1: Lighting System Circuit Diagram

GTY667634

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
