DTC P0705: Transmission Range Sensor Circuit (PRNDL Input) [09/2015 - ]: Wiring Diagram

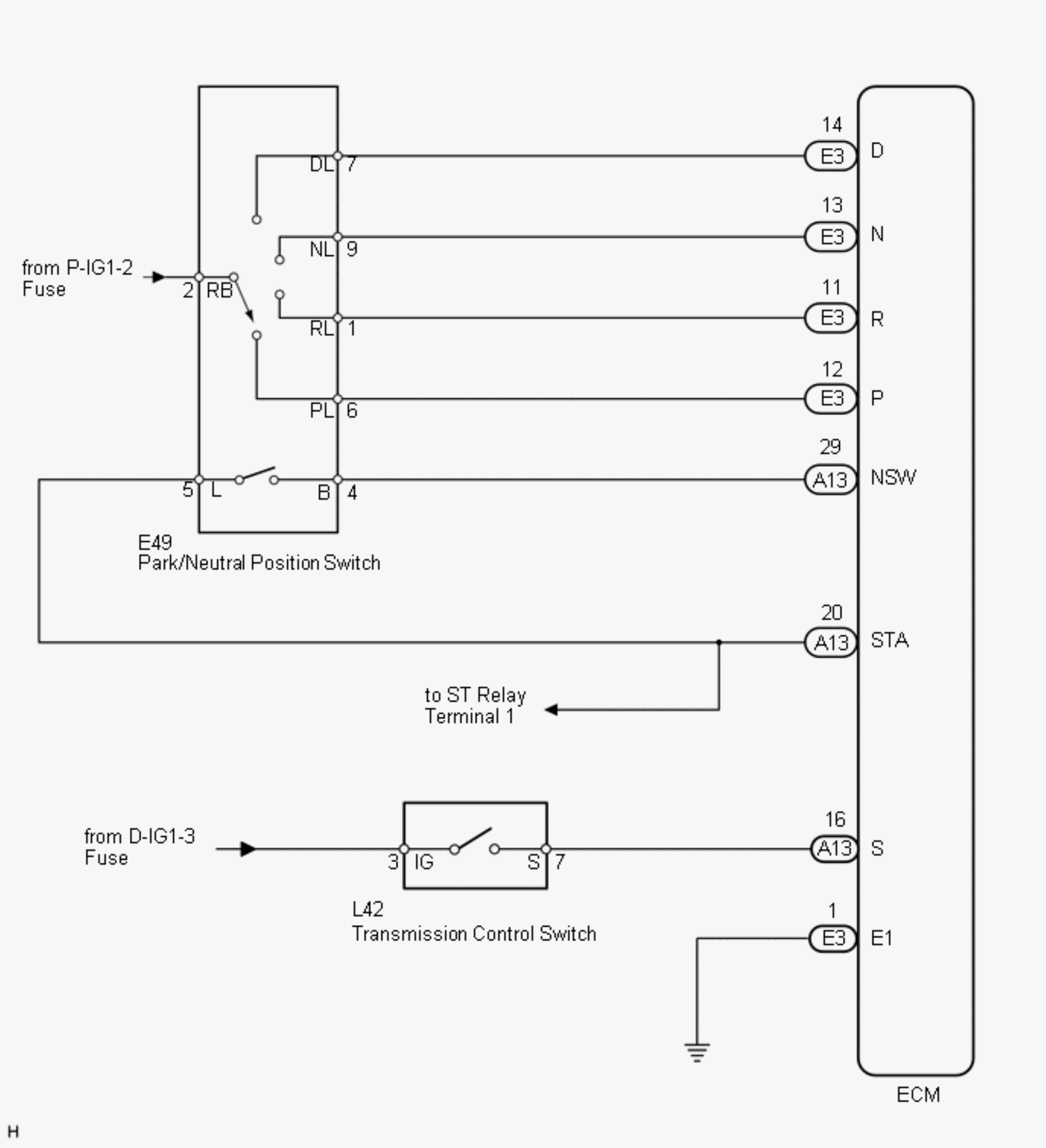

Fig 1: Park / Neutral Switch Circuit Diagram

GTY647358

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
