Components [09/2015 - ]: Illustration

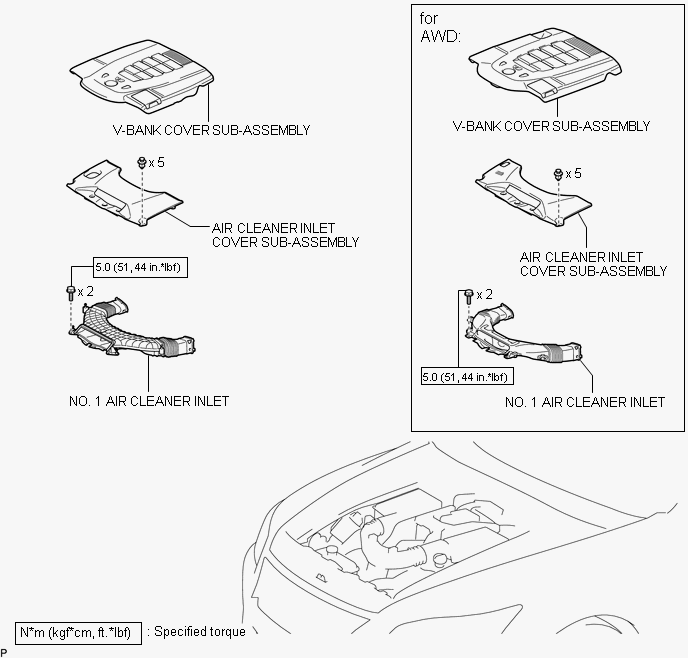

Fig 1: Vvt Sensor Replacement Components With Torque Specifications (1 Of 2)
GTY626496Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

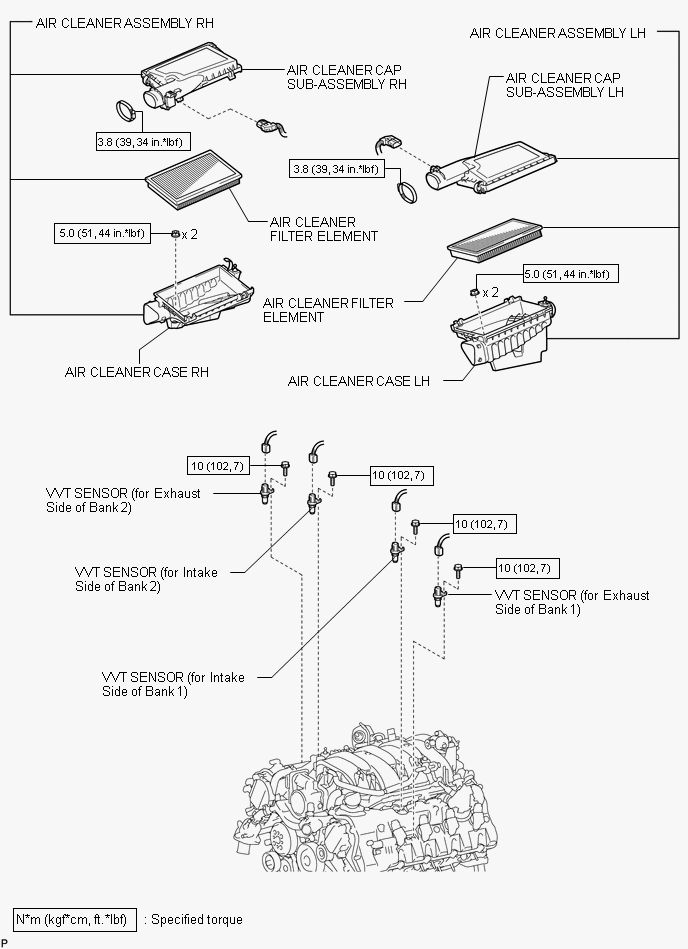

Fig 1: Vvt Sensor Replacement Components With Torque Specifications (2 Of 2)
GTY630483Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
