On-Vehicle Inspection [09/2015 - ]: Procedure

  1. INSPECT FUEL PUMP RELAY (F/PMP)

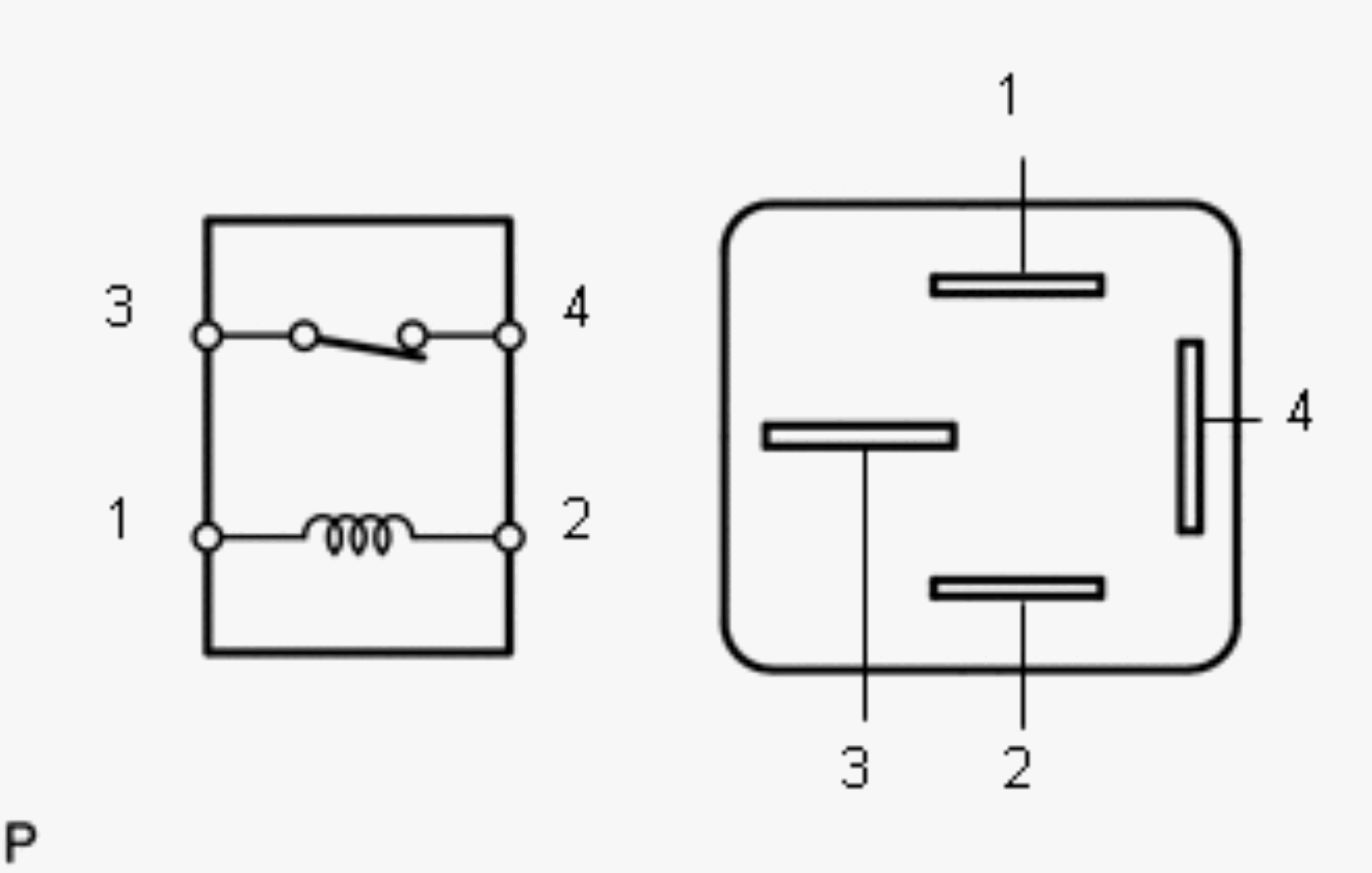

    GTY644367Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      3 - 4 when no battery voltage is applied to terminals 1 and 2 Below 1 Ω
      3 - 4 when battery voltage is applied to terminals 1 and 2 10 kΩ or higher

      If the result is not as specified, replace the fuel pump relay.
