Installation [09/2015 - ]: Procedure

  1. INSTALL REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY
    1. Attach the 2 claws to install the rear power window regulator switch assembly.
      GTY685895Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

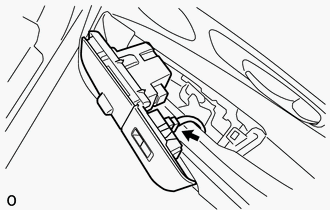

    2. Connect the connector.
      GTY665356Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Attach the 2 clips to install the rear armrest base panel assembly.
      GTY116773Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
