Installation [09/2015 - ]: Procedure

  1. INSTALL WINDSHIELD WIPER SWITCH ASSEMBLY
    1. Attach the claw and install the wiper switch.
      GTY627042Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the 2 connectors.
  2. REMOVE STEERING COLUMN COVER (w/ Driver Monitor Camera)
    1. Connect the connector.
    2. Attach the 4 clips to install the steering column cover upper onto the instrument panel cluster finish panel.
      GTY630612Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Attach the claw to install the upper steering column cover.
    4. Attach the 2 claws to install the lower steering column cover.
      NOTE:

      Do not damage the tilt and telescopic switch.

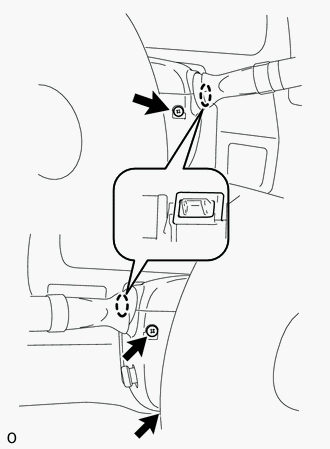

    5. Using a screwdriver, while turning the steering wheel to the right and left, install the 3 screws.
      GTY676494Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL STEERING COLUMN COVER (w/o Driver Monitor Camera)
    1. Attach the 4 clips to install the steering column cover upper onto the instrument panel cluster finish panel.
      GTY630637Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Attach the claw to install the upper steering column cover.
    3. Attach the 2 claws to install the lower steering column cover.
      NOTE:

      Do not damage the tilt and telescopic switch.

    4. Using a screwdriver, while turning the steering wheel to the right and left, install the 3 screws.
      GTY676494Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
